G3/8 Side-Entry Concealed Cistern Fill Valve with Stainless Steel Mesh Filter

G3/8 Side-Entry Concealed Cistern Fill Valve with Stainless Steel Mesh Filter

This side-entry fill valve is designed for concealed toilet cisterns requiring a G3/8 threaded water inlet. It combines a built-in stainless-steel filter with an operating pressure range of 4–175 psig (0.3–12 bar / 0.03–1.2 MPa). CE, cUPC and PMG certifications make it a practical option for sanitaryware production, commercial washrooms and plumbing projects.

  • Item No :

    T1307A1
  • Connector :

    G3/8" POM thread
  • Water Pressure :

    4-175p.s.i.g (0.3-12bar)(0.03Mpa-1.2Mpa)
  • Toilet Configuration :

    Concealed Cistern
  • Certification :

    CE, CUPC, PMG
  • Warranty :

    3years
  • Order(MOQ) :

    1000
  • Shipping Port :

    Xiamen
  • Custom Service :

    LOGO,Package,Color

    PRODUCT DESCRIPTION



Product Name: G3/8 Side-Entry Concealed Cistern Fill Valve with Stainless Steel Mesh Filter



Designed for Concealed Cistern Systems



This side-entry fill valve is specially designed for concealed toilet cisterns. Its compact vertical structure allows it to fit inside concealed cistern tanks while providing reliable water refilling and adjustable water-level control.

Featuring a threaded side inlet, a large locking nut and an integrated float cup, this valve offers a practical solution for concealed toilet cistern installations.



Key Product Features



1. Threaded Side Inlet. Designed with a horizontal threaded water inlet for side-entry concealed cistern connections.

2. Large Locking Nut. The large locking nut provides an easy-to-grip design for convenient installation and connection.

3. Adjustable Water Level. The adjustable float position allows users to set the desired water level inside the cistern.

4. Integrated Large Float Cup. The large float cup responds to changes in water level and controls the water filling cycle.

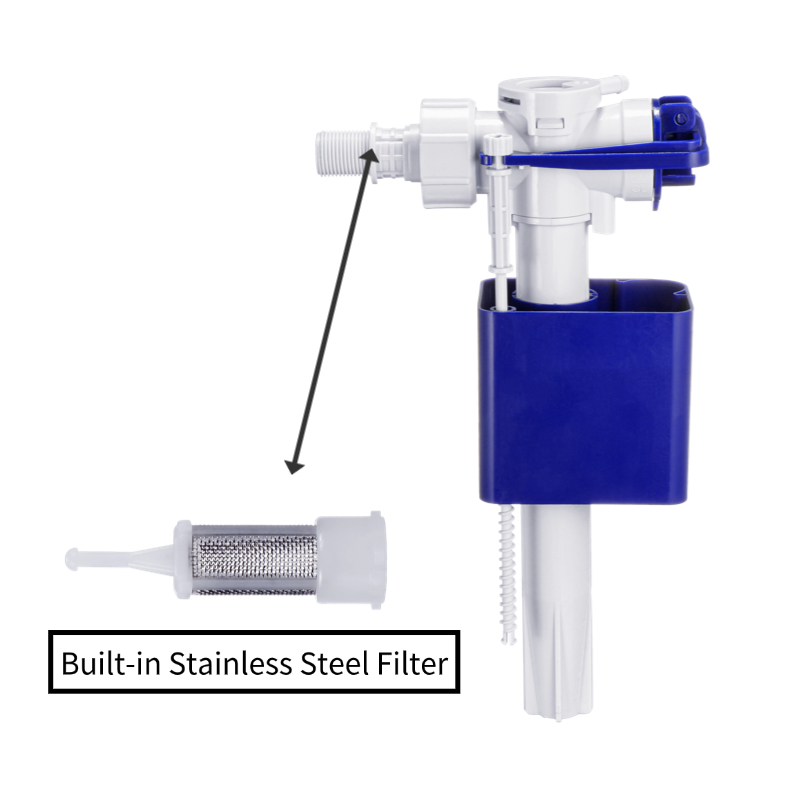

Built-In Stainless Steel Mesh Filter



An upgraded stainless steel mesh filter is integrated into the water inlet to help capture sediment, rust and other small particles before they enter the valve mechanism.

Compared with traditional plastic filters, the denser stainless steel mesh provides finer filtration and helps protect internal valve components.

Key benefits:

  • Helps capture debris and sediment from incoming water
  • Helps protect the valve seal and internal components
  • Reduces the risk of debris-related sticking
  • Helps maintain reliable water refilling performance

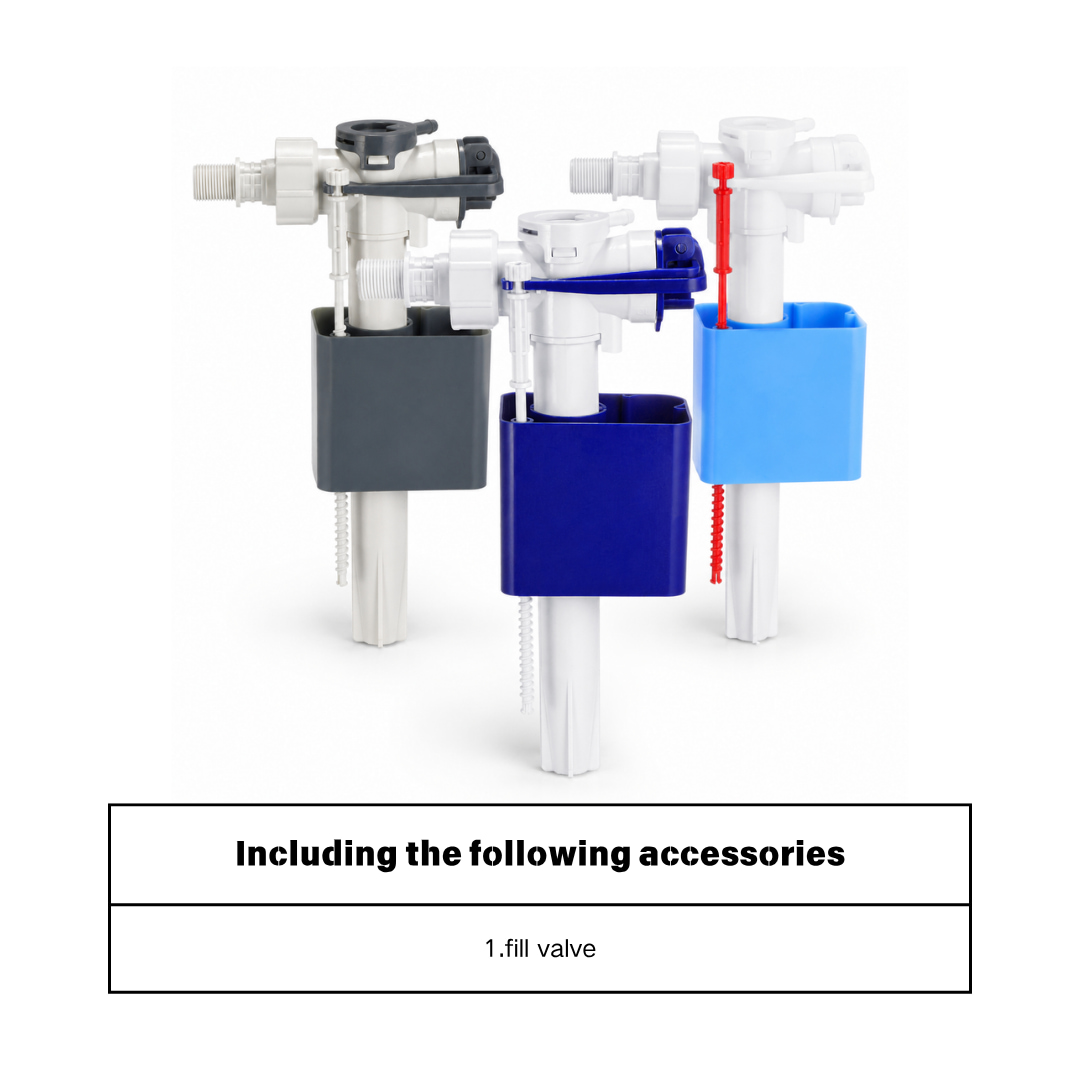

Two Standard Color Options



The concealed cistern fill valve is available in two standard color combinations:

  • Navy Blue / White
  • Charcoal Gray / White

Different color combinations provide more flexibility for sanitaryware manufacturers and concealed cistern product configurations.



Real-World Installation Display



The following images show the fill valve installed inside concealed toilet cisterns in both available color options.

Its compact structure and side-entry connection make it suitable for concealed cistern installations with matching connection specifications.

Before ordering, please confirm the inlet thread size, inlet position and available installation space of your cistern.

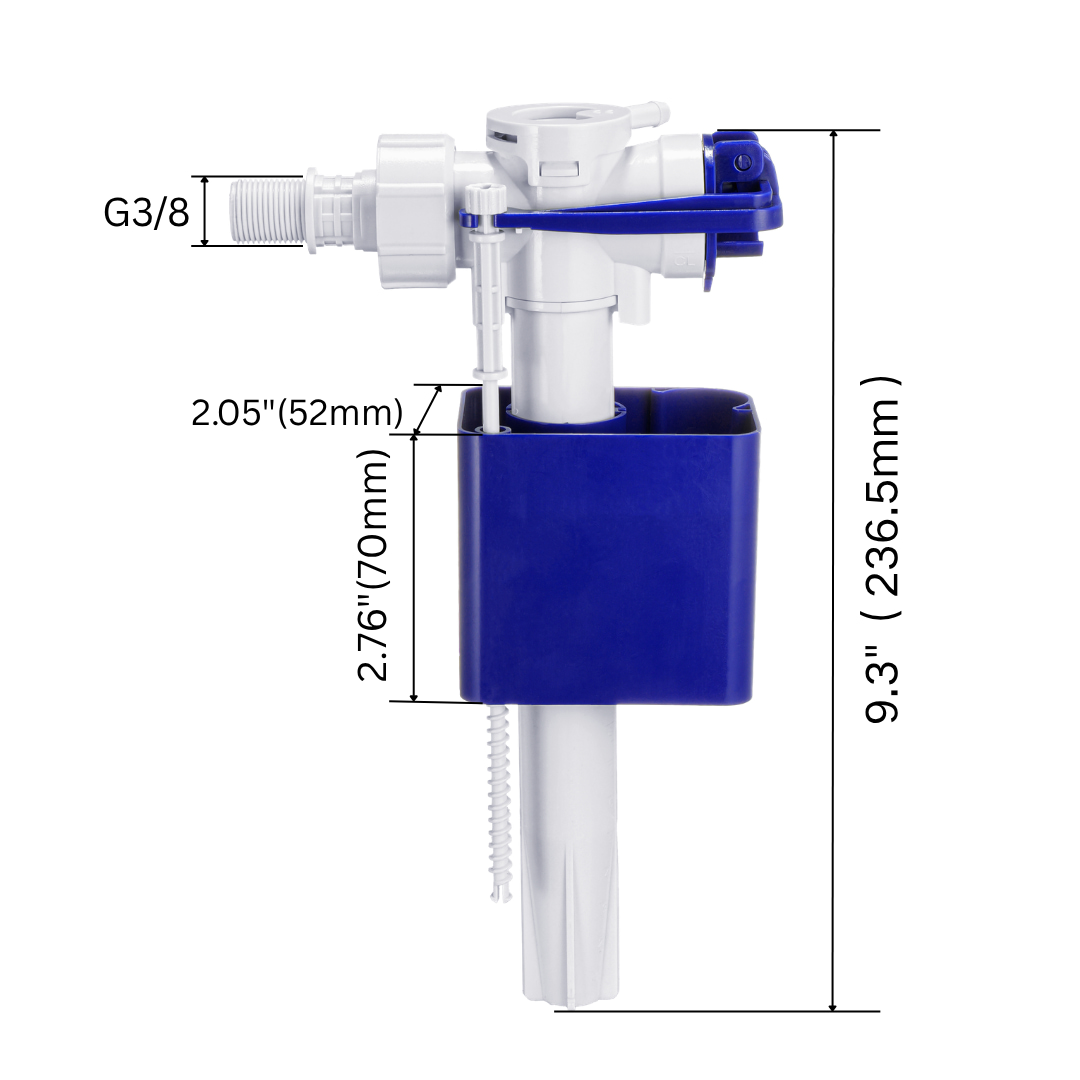

Product Specifications



Item Specification
Product Type Side-Entry Concealed Cistern Fill Valve
Model T1307A1
Inlet Connection G3/8
Operating Pressure 0.3–12 bar
Pressure Range 0.03–1.2 MPa
Overall Height Approx. 236.5 mm
Horizontal Length Approx. 140.2 mm
Float Cup Height Approx. 70 mm
Filter Stainless Steel Mesh Filter
Standard Colors Navy Blue / White; Charcoal Gray / White
Warranty 3 Years

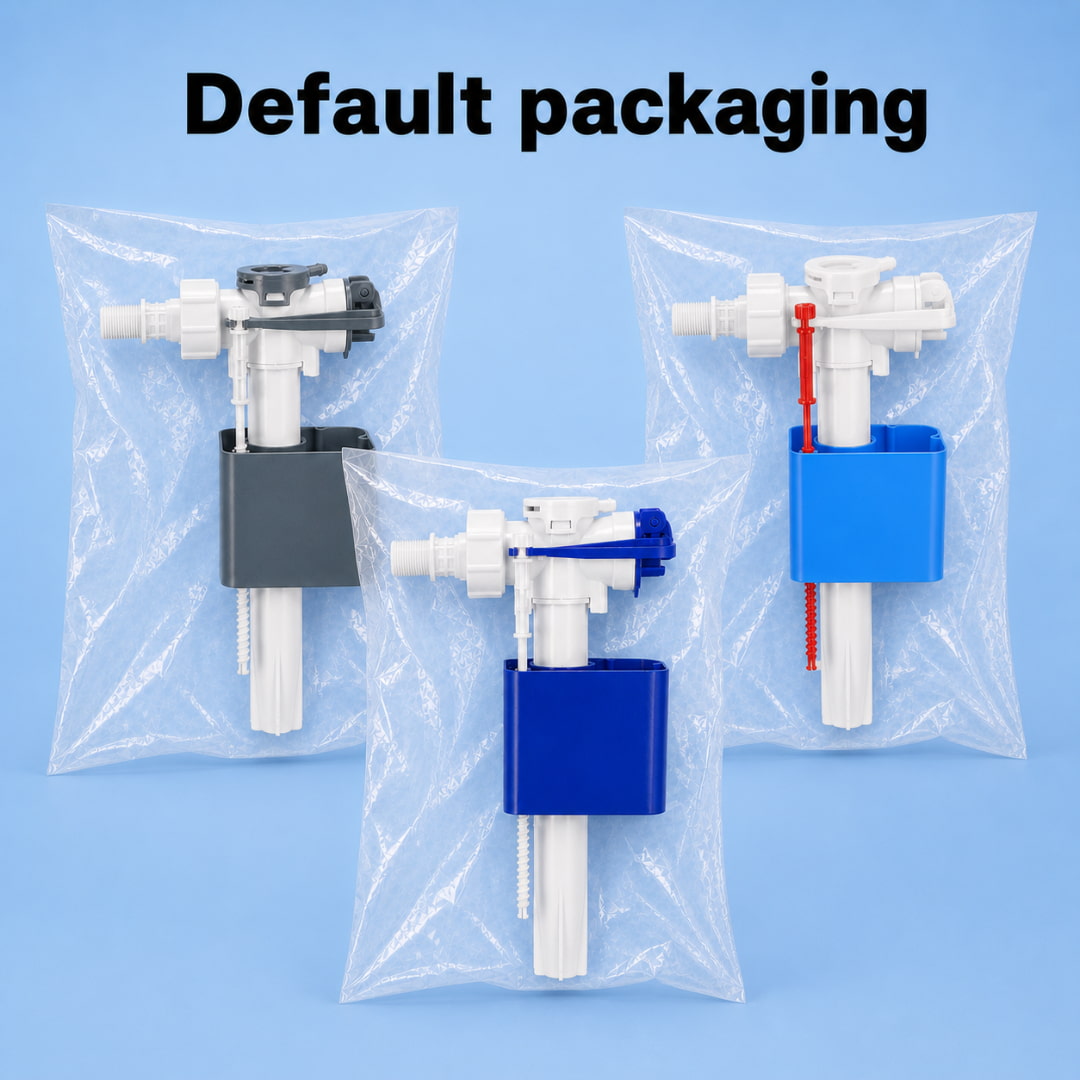

Packaging Information



Each fill valve is individually packed in a transparent PE bag to provide basic protection during storage and transportation.

Standard carton information:

  • Packaging: Individual PE Bag
  • Quantity: 25 pcs/carton
  • Carton Dimensions: 50 × 35 × 40 cm
  • Gross Weight: 7 kg/carton

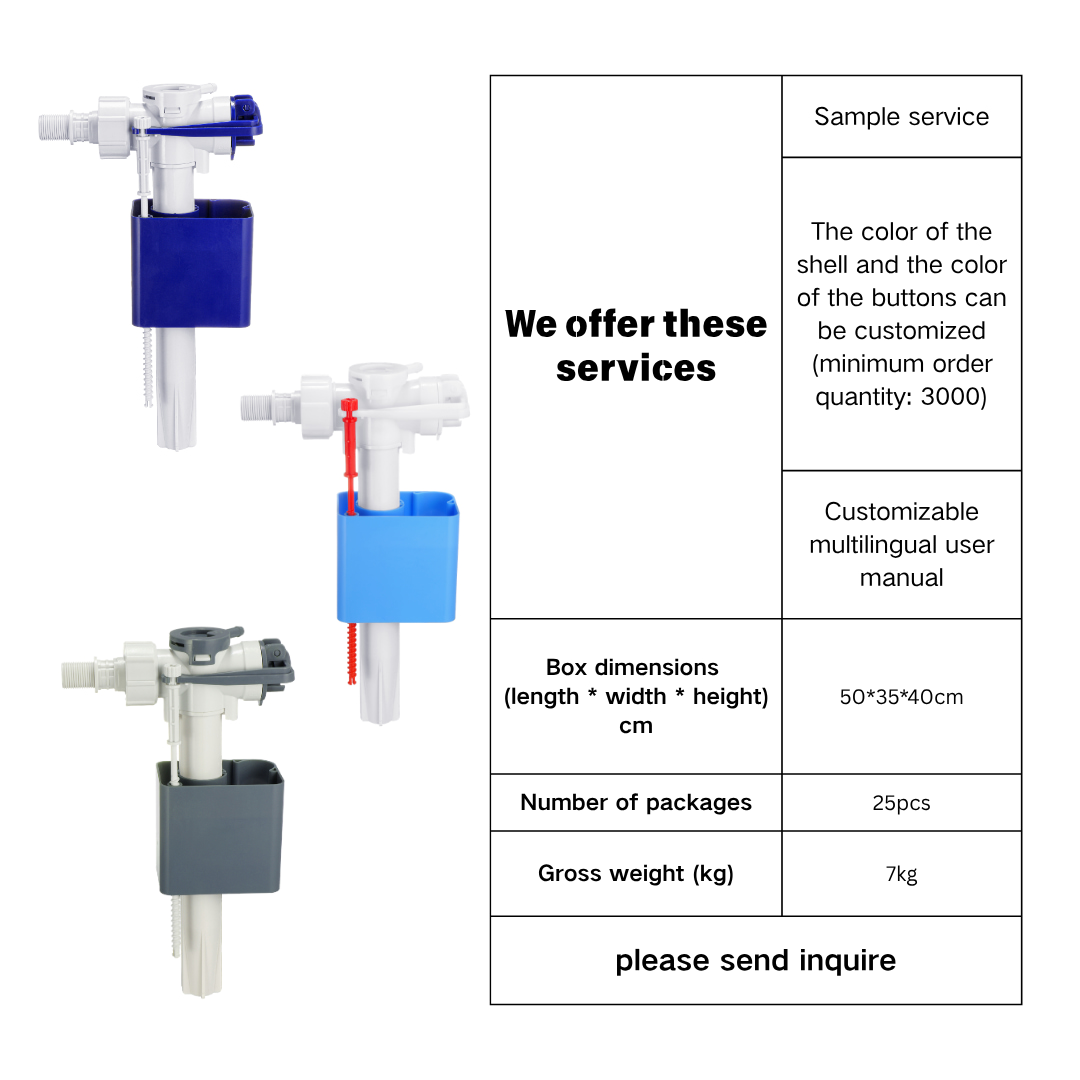

OEM & Customization Services



We provide flexible customization services for sanitaryware manufacturers, distributors and wholesale buyers.

Available services include:

  • Sample service
  • Custom product colors
  • Customized logo printing
  • Customized packaging
  • Multilingual user manuals

Contact us to discuss your project requirements and customization options.



Delivery Time:

≤ 1000 pcs / 15 days

≤ 5000 pcs / 20 days

> 5000 pcs / negotiate

Sample Service Yes
Supply Ability 50000 pcs / month



    PRODUCT ADVANTAGES



1. Proven Performance Across Multiple Markets

Our product has been successfully sold in multiple countries and markets. Over the years, we have continuously iterated and upgraded it based on market feedback to address various challenges, such as high water temperatures, high water pressure, and poor water quality. Today, the product is highly mature and stable. Using our product to expand your business can effectively reduce customer complaints and improve customer satisfaction.



2. Comprehensive Customization Services

We offer customization options including LOGO printing, color selection, and packaging design. For example, we can print your logo on the product surface, apply your exclusive colors to the float and decorative cover, and our professional packaging designers can create market-oriented packaging that enhances your brand presence. We are committed to helping you establish a strong brand influence in your local market.



3. Certified for Global Compliance

This product has already obtained CE, CUPC, and ICC-ES certifications. If your target market requires additional certifications, we can assist you in obtaining the necessary approvals to ensure smooth market entry.



    FAQ



Is this fill valve suitable for every concealed cistern?

The valve is designed for concealed cisterns with a G3/8 side-entry water connection. Before ordering, confirm the cistern’s inlet position, internal clearance, connection size and operating water pressure. It should not be treated as universally compatible with every cistern.



What water-pressure range does the valve support?

The supported range is 4–175 psig, equivalent to approximately 0.3–12 bar or 0.03–1.2 MPa. The inlet also contains a built-in stainless-steel mesh filter to help screen particles from the incoming water.



What customization and ordering services are available?

Sample service is available. External shell and button colors can be customized with a minimum order quantity of 3,000 pieces, and multilingual user manuals can also be customized. Standard carton information is 25 pieces per carton, 50 × 35 × 40 cm and 7 kg gross weight.
