Side-Mounted Wall-Hung Toilet Fixing Bolt Kit – Jielin T3228 with M12 Threaded Sleeves

    PRODUCT DESCRIPTION

Product Name: Side-Mounted Wall-Hung Toilet Fixing Bolt Kit – Jielin T3228 with M12 Threaded Sleeves

Side-Access Locking Design

The Jielin T3228 is a side-mounted wall-hung toilet fixing bolt kit for concealed cistern bathrooms. Instead of requiring the locking point to be accessed from behind the toilet pan, the fixing bolt can be reached through the lateral opening in the ceramic.

The supplied Allen key is used to tighten the fixing point from the side. After locking, the supplied cover parts close the access opening for a discreet finished appearance. This structure makes the locking position easier to reach while keeping the main fixing hardware concealed.

For renovation work, the kit provides side-locking toilet mounting hardware for bathroom renovation projects where the ceramic pan and mounting system match the supplied dimensions.

Complete Coordinated Hardware Set

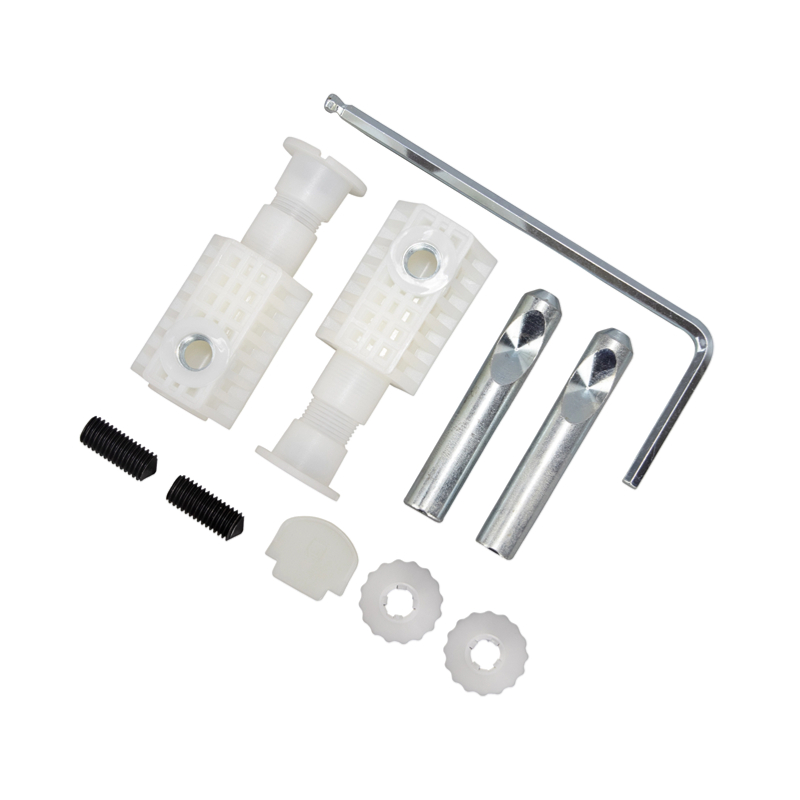

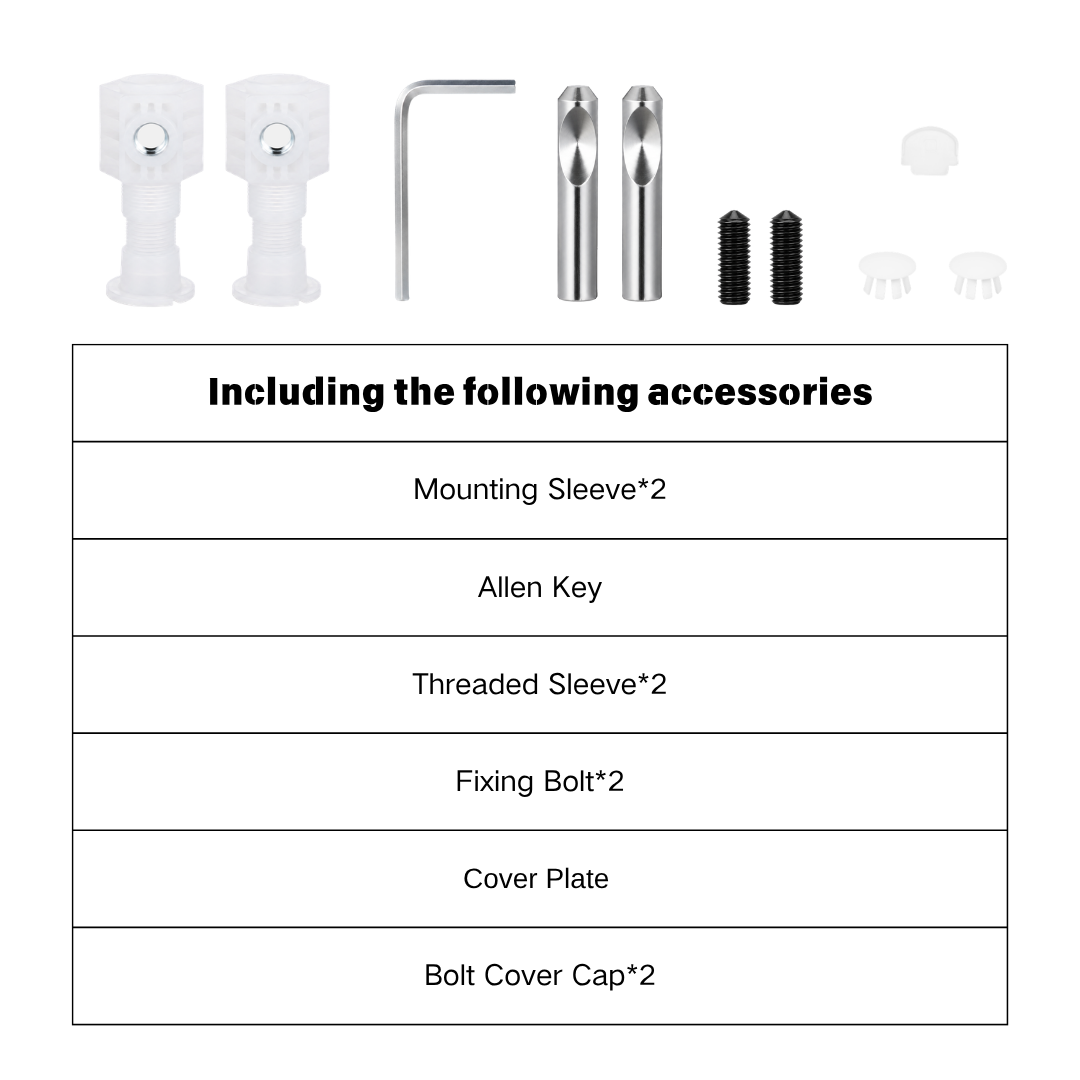

Each Jielin T3228 kit contains:

• 2 white molded mounting sleeves with metal threaded inserts

• 2 M12 female-threaded metal sleeves

• 2 black side-locking fixing bolts

• 1 Allen key

• 1 small cover plate

• 2 round bolt cover caps

• An illustrated instruction leaflet shown in the packaging image

Keeping these parts together helps reduce missing-component risks during quotation, warehouse packing, customer delivery, and installation preparation.

Dimensions and Compatibility Reference

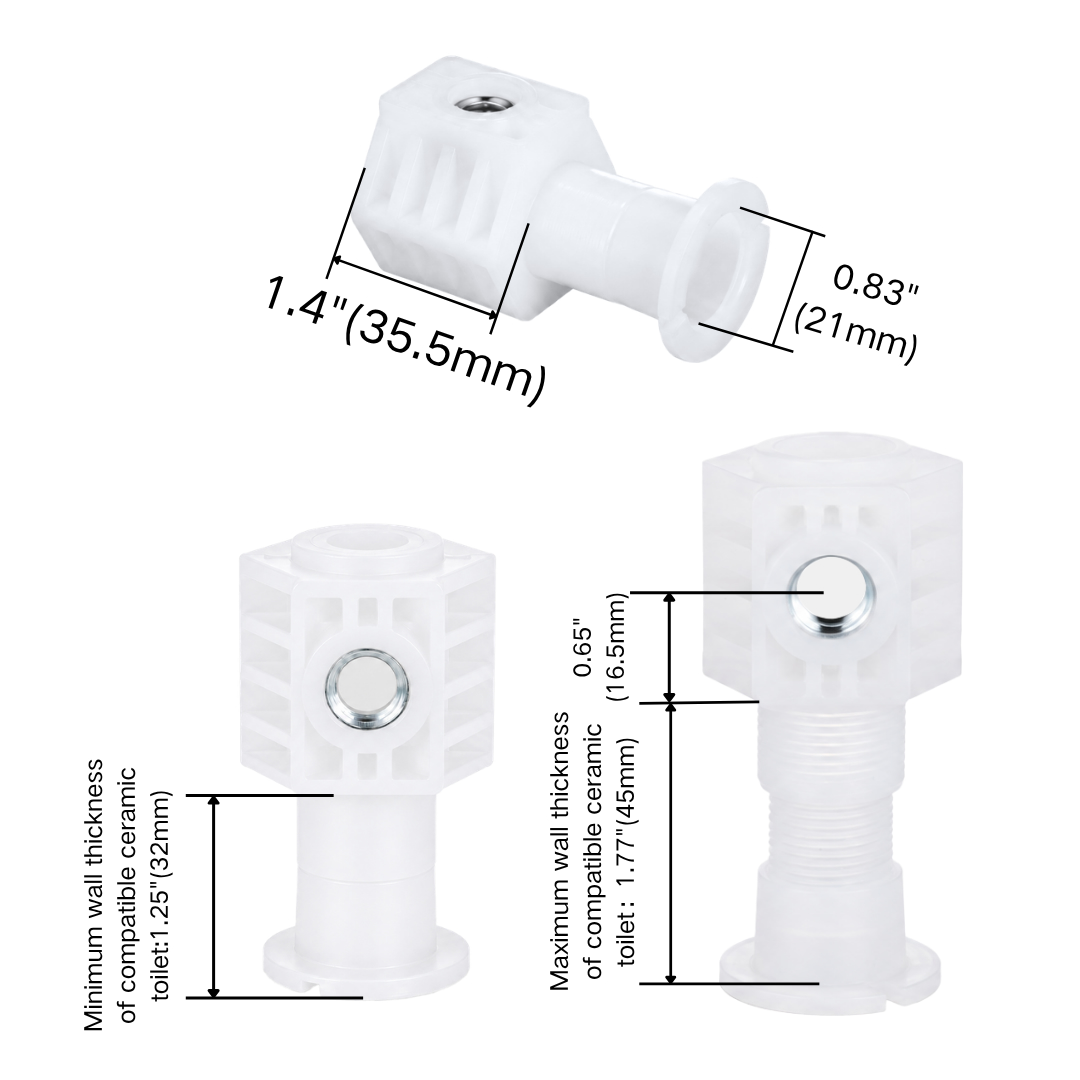

The supplied dimension drawings indicate:

• Mounting sleeve body dimension: 35.5 mm / 1.40 in

• Mounting sleeve flange: 21 mm / 0.83 in

• Compatible ceramic thickness shown: 32–45 mm / 1.25–1.77 in

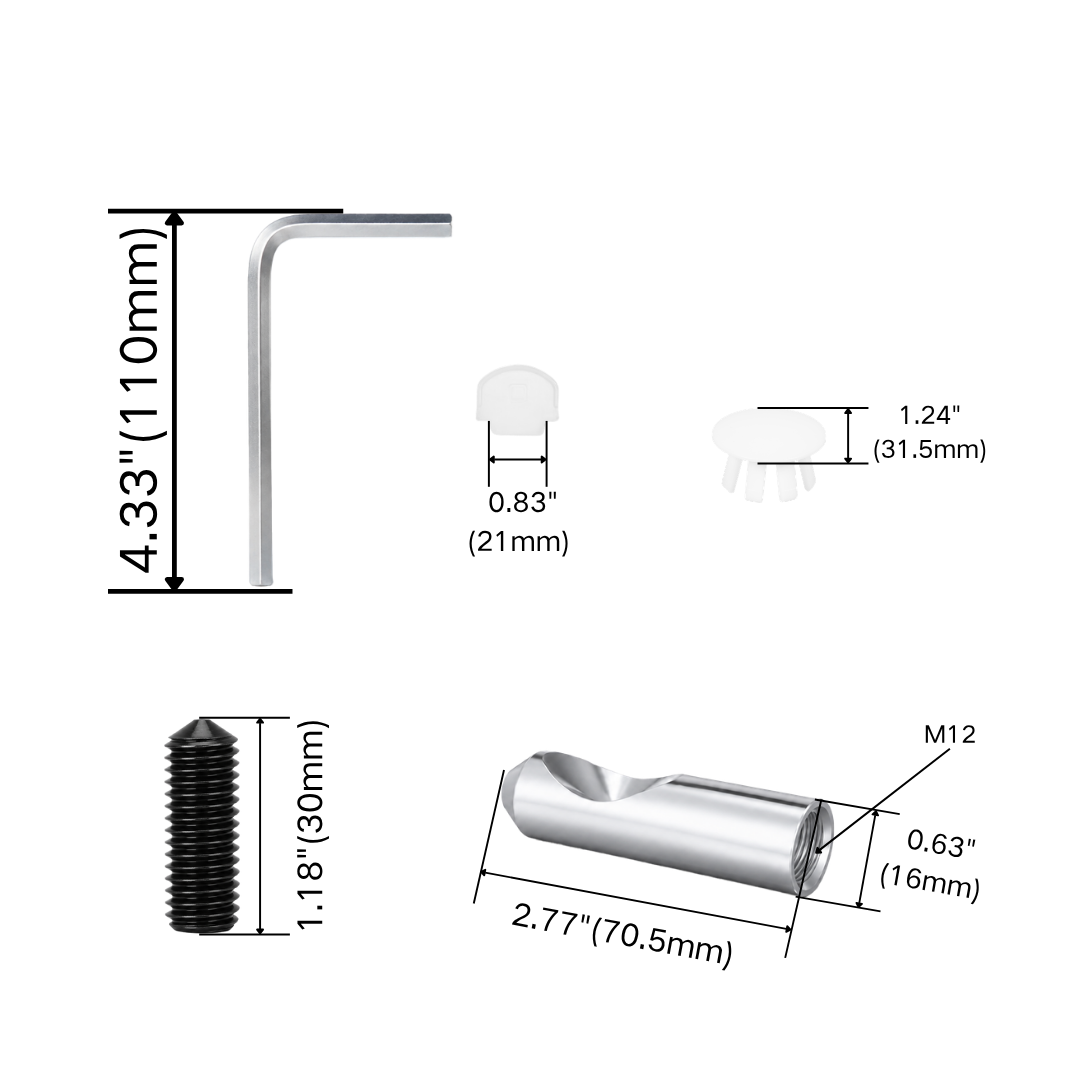

• Threaded metal sleeve: 70.5 mm long × 16 mm diameter / 2.77 × 0.63 in

• Metal sleeve internal thread: M12

• Side-locking fixing bolt length: 30 mm / 1.18 in

• Allen key length: 110 mm / 4.33 in

• Small cover plate width: 21 mm / 0.83 in

• Round bolt cover dimension: 31.5 mm / 1.24 in

The 32–45 mm range refers to the compatible ceramic thickness shown in the supplied drawing. Buyers should verify the toilet pan, lateral access opening, support bolts, and mounting-system dimensions before ordering. These measurements do not establish compatibility with every wall-hung toilet model.

Applications and Buyer Value

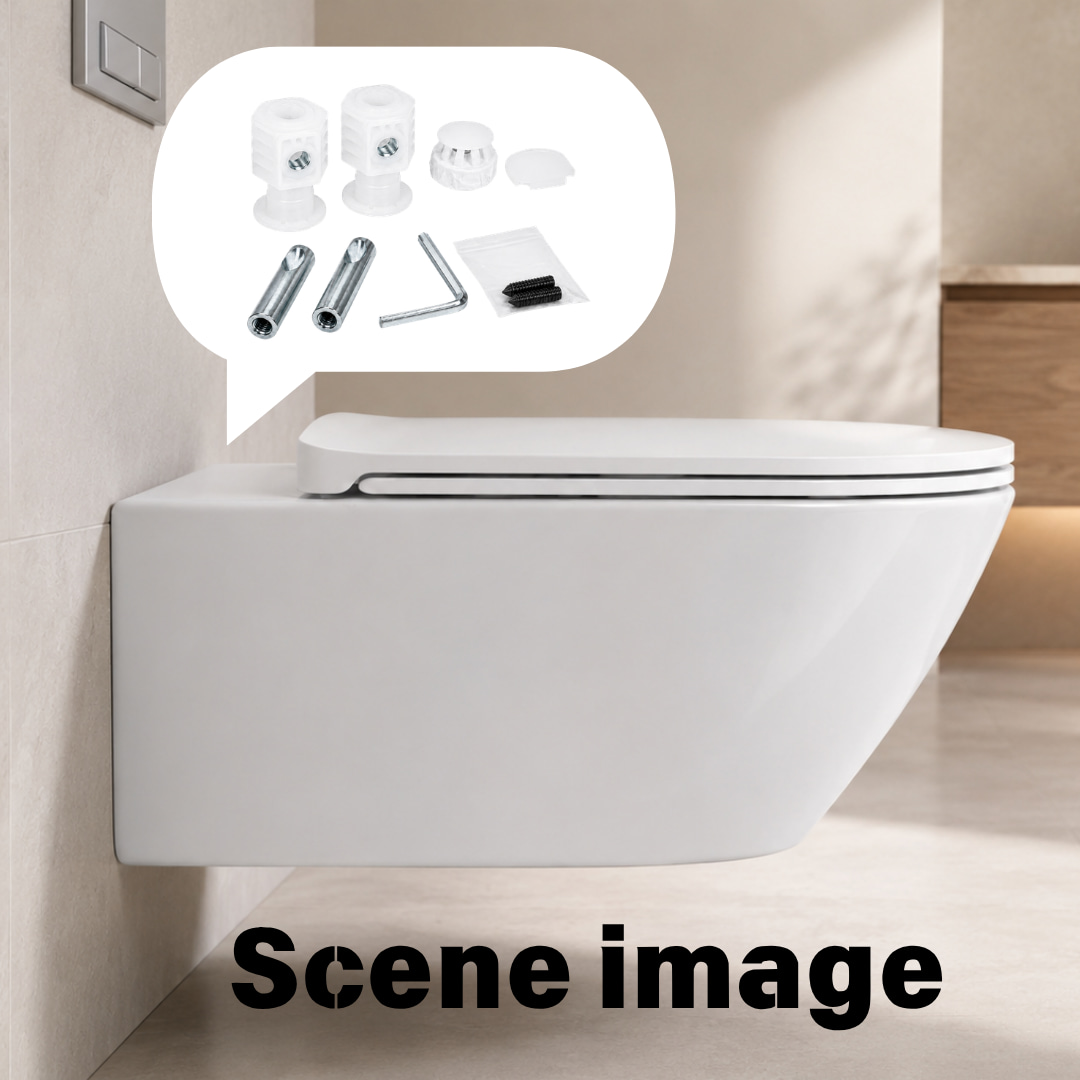

T3228 can be specified as commercial side-fixing hardware for wall-hung toilet projects in hotels, apartments, residential developments, and bathroom renovation programs when the fixture dimensions are compatible.

It is also a practical side-mounted wall-hung toilet fixing kit for sanitary ware distributors that need a clearly defined replacement or project hardware set. The model number helps buyers identify the same configuration for quotations, inventory records, and repeat orders.

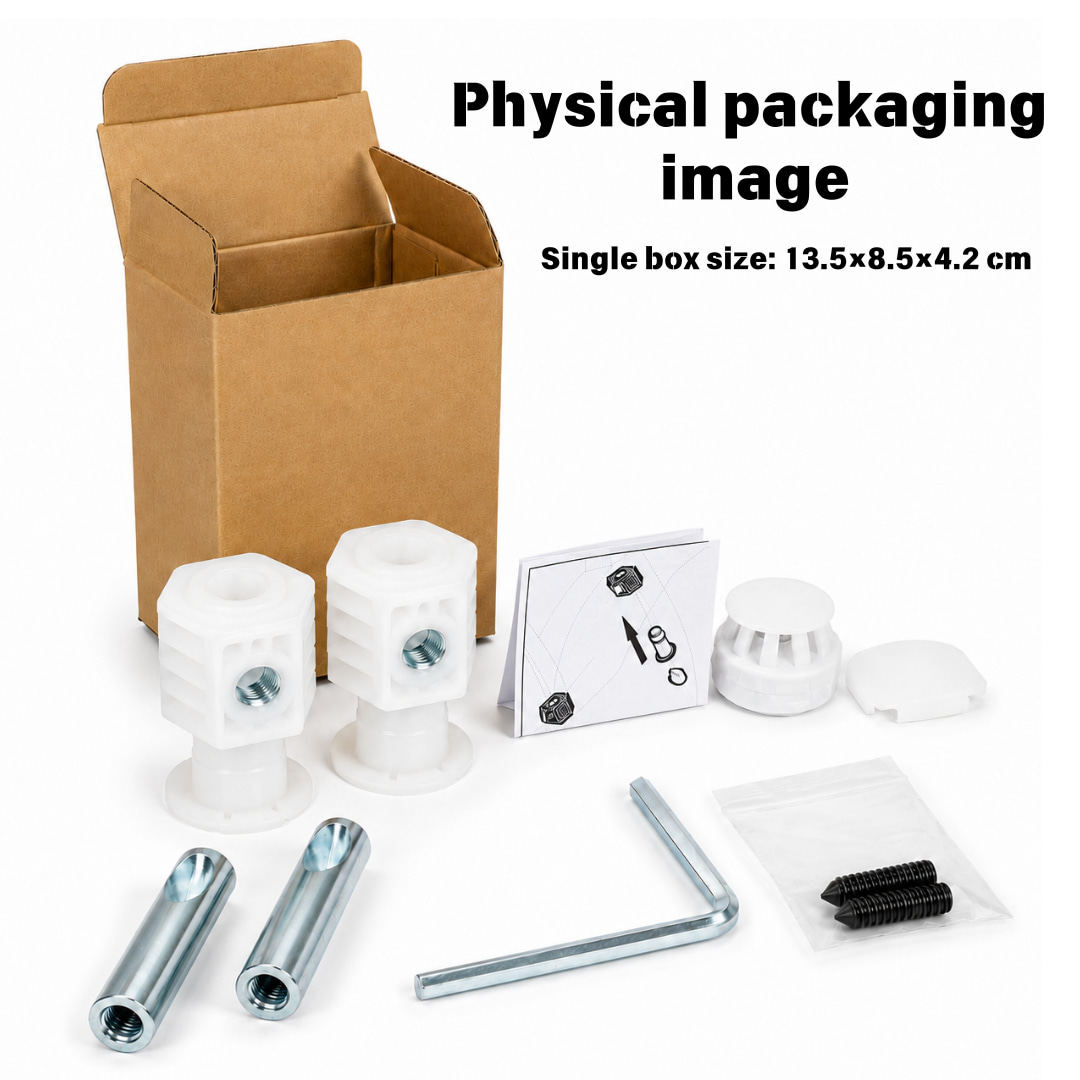

B2B Packaging Information

The supplied packing information shows:

• Single-box size: 13.5 × 8.5 × 4.2 cm

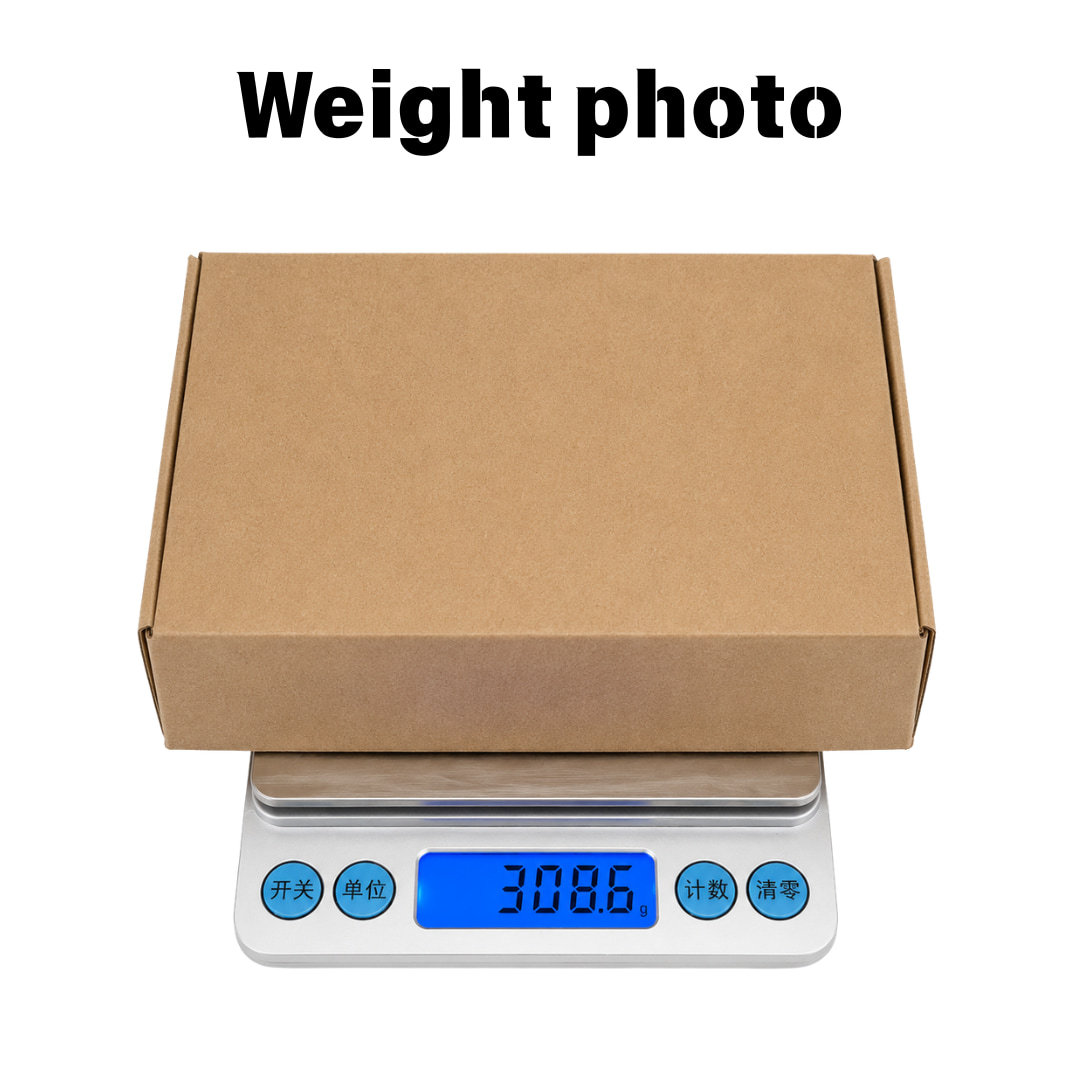

• Boxed sample weight shown: 308.6 g

• Master-carton size: 50 × 35 × 40 cm

• Packing quantity: 40 pcs per carton

• Master-carton gross weight: 12.5 kg

For resellers and project buyers, the wholesale side-locking toilet fixing bolt kit provides compact individual packaging suitable for distribution, project supply, and replacement-hardware programs.

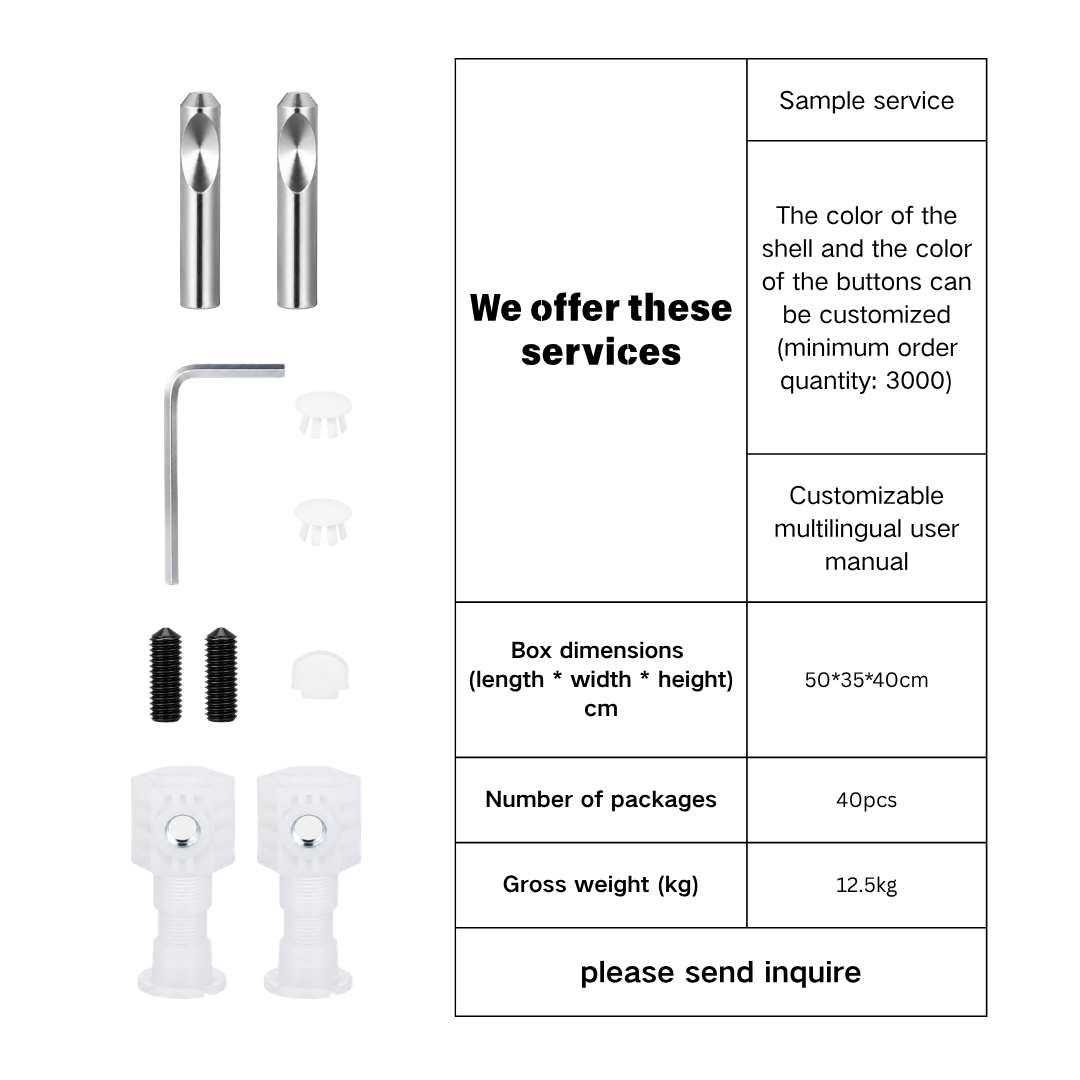

Sample and Customization Options

Sample service is listed in the supplied product information. Color customization is offered with a stated minimum order quantity of 3,000 pieces. Buyers should confirm which molded T3228 components are included in the selected color program.

For localized documentation requirements, a custom wall-hung toilet side-mount kit with multilingual manual support can also be requested. Final colors, languages, artwork, packing specifications, and customization scope should be confirmed during quotation.

    PRODUCT ADVANTAGES

1. Proven Performance Across Multiple Markets

Our product has been successfully sold in multiple countries and markets. Over the years, we have continuously iterated and upgraded it based on market feedback to address various challenges, such as high water temperatures, high water pressure, and poor water quality. Today, the product is highly mature and stable. Using our product to expand your business can effectively reduce customer complaints and improve customer satisfaction.

2. Comprehensive Customization Services

We offer customization options including LOGO printing, color selection, and packaging design. For example, we can print your logo on the product surface, apply your exclusive colors to the float and decorative cover, and our professional packaging designers can create market-oriented packaging that enhances your brand presence. We are committed to helping you establish a strong brand influence in your local market.

3. Certified for Global Compliance

This product has already obtained CE, CUPC, and ICC-ES certifications. If your target market requires additional certifications, we can assist you in obtaining the necessary approvals to ensure smooth market entry.

    FAQ

What does “side-mounted” mean on the Jielin T3228?

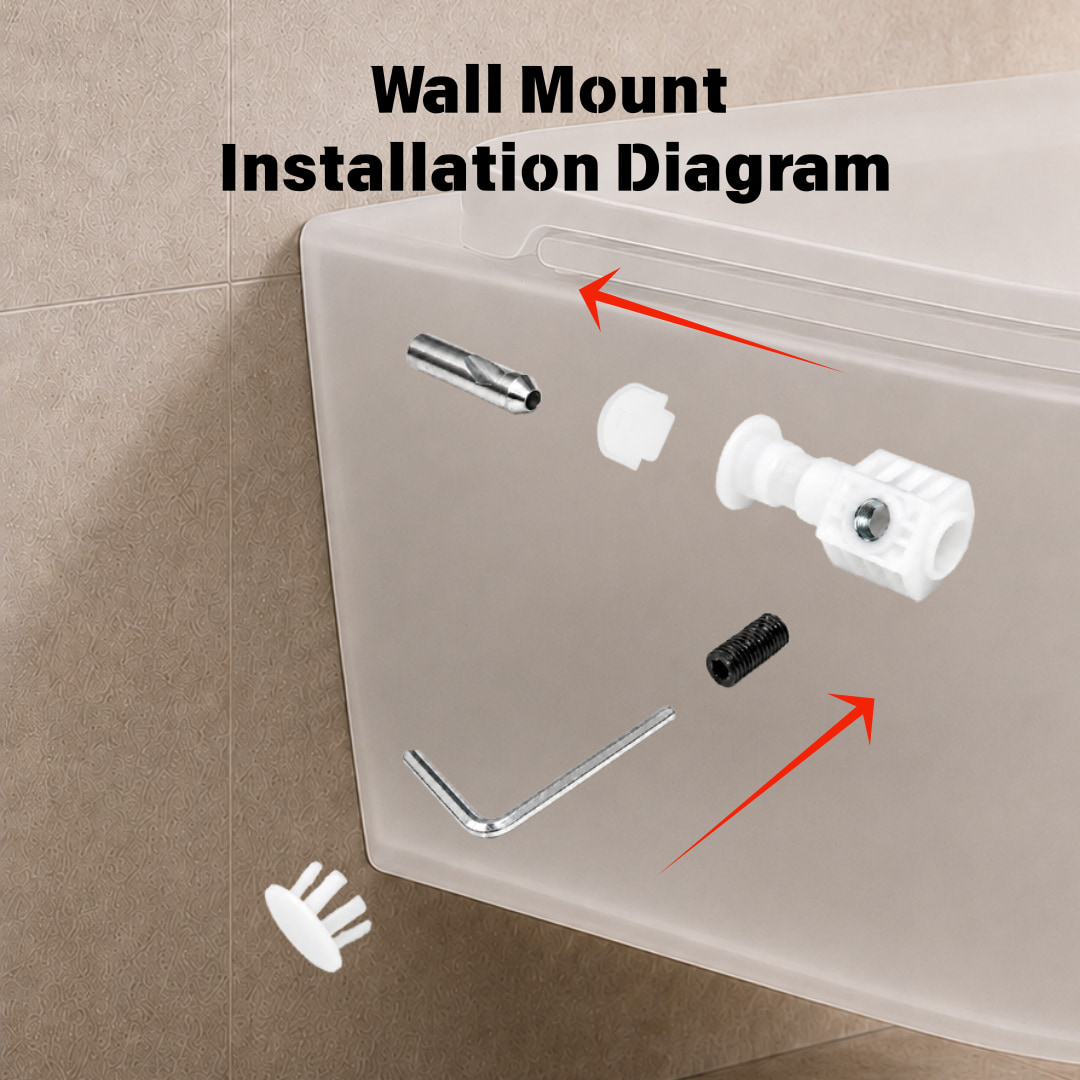

It means the fixing and locking point is accessed from the side of the wall-hung ceramic toilet pan. The supplied Allen key reaches the fixing bolt through the lateral opening, allowing the hardware to be tightened from the side. The supplied cover parts are then used to close the access opening.

How can I check whether T3228 fits my wall-hung toilet?

The supplied drawing indicates a compatible ceramic thickness of 32–45 mm. The metal threaded sleeve measures 70.5 × 16 mm and has an M12 internal thread. Buyers should compare these dimensions, the side access opening, and the mounting-system specifications with their toilet pan drawings before ordering.

What is included, and are samples or customization available?

Each kit includes two mounting sleeves, two M12 threaded metal sleeves, two side-locking fixing bolts, one Allen key, one small cover plate, and two round bolt cover caps. Sample service, color customization with a stated MOQ of 3,000 pieces, and customizable multilingual instructions are listed in the supplied product information.
