3 Inch Two-Piece Toilet Tank Repair Kit with Adjustable 15/16-14 NPSM Fill Valve, Front-Mount Lever and Stainless Steel Bolts

3 Inch Two-Piece Toilet Tank Repair Kit with Adjustable 15/16-14 NPSM Fill Valve, Front-Mount Lever and Stainless Steel Bolts

This complete toilet tank repair kit is designed for the replacement and maintenance of two-piece toilet tanks. It includes an adjustable-height fill valve with a 15/16-14 NPSM water inlet, a 3-inch outlet single flush valve, a front-mount toilet tank lever, a tank-to-bowl rubber gasket and stainless steel mounting bolts.

The adjustable fill valve fits different toilet tank heights and automatically shuts off the water supply when the preset water level is reached. By combining the main replacement components in one package, this kit simplifies product selection, installation and purchasing for plumbing wholesalers, sanitary ware distributors, repair companies and private-label customers.

  • Item No :

    T1115C+T0108FG2+T2303CP+T3139A+3T4225-03B
  • Toilet Configuration :

    Two-piece
  • Certification :

    CE, UPC, CUPC
  • Warranty :

    3-5 Years
  • Order(MOQ) :

    1000 set
  • Shipping Port :

    Xiamen
  • Custom Service :

    LOGO,Package,Color

    PRODUCT DESCRIPTION



Product Name: 3 Inch Two-Piece Toilet Tank Repair Kit with Adjustable 15/16-14 NPSM Fill Valve, Front-Mount Lever and Stainless Steel Bolts



Complete repair solution for two-piece toilet tanks

This two piece toilet tank repair kit wholesale solution includes the main components required to replace worn, leaking or malfunctioning toilet tank mechanisms.

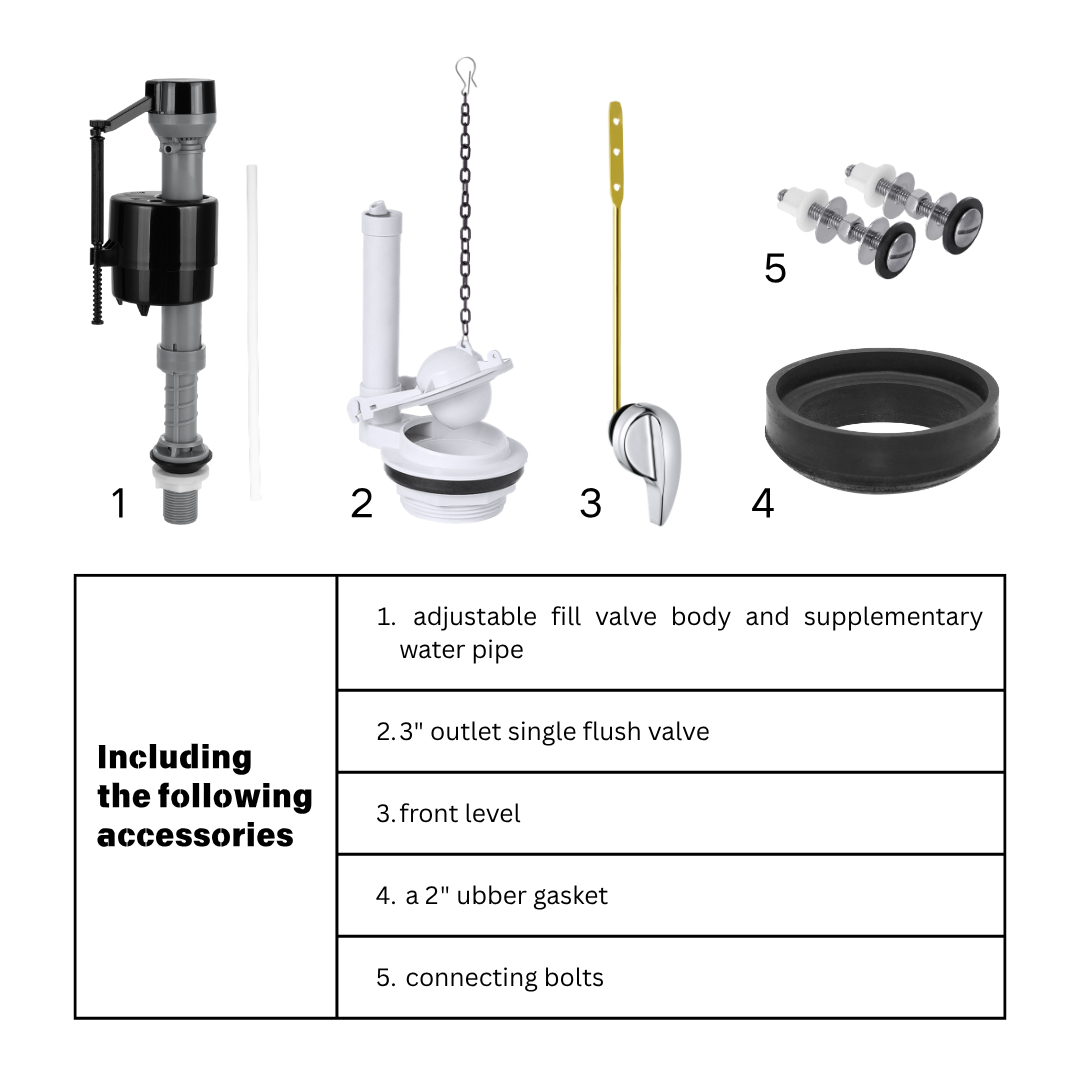

The complete set includes:

  • Adjustable-height toilet fill valve
  • 15/16-14 NPSM water inlet connection
  • Refill tube
  • 3-inch outlet single flush valve
  • Flush valve chain
  • Front-mount toilet tank lever
  • Tank-to-bowl rubber gasket
  • Stainless steel tank mounting bolts
  • Washers, nuts and plastic fastening components

Supplying all components together reduces the need to source and match individual parts, making the kit suitable for wholesale distribution, plumbing repair and private-label programs.

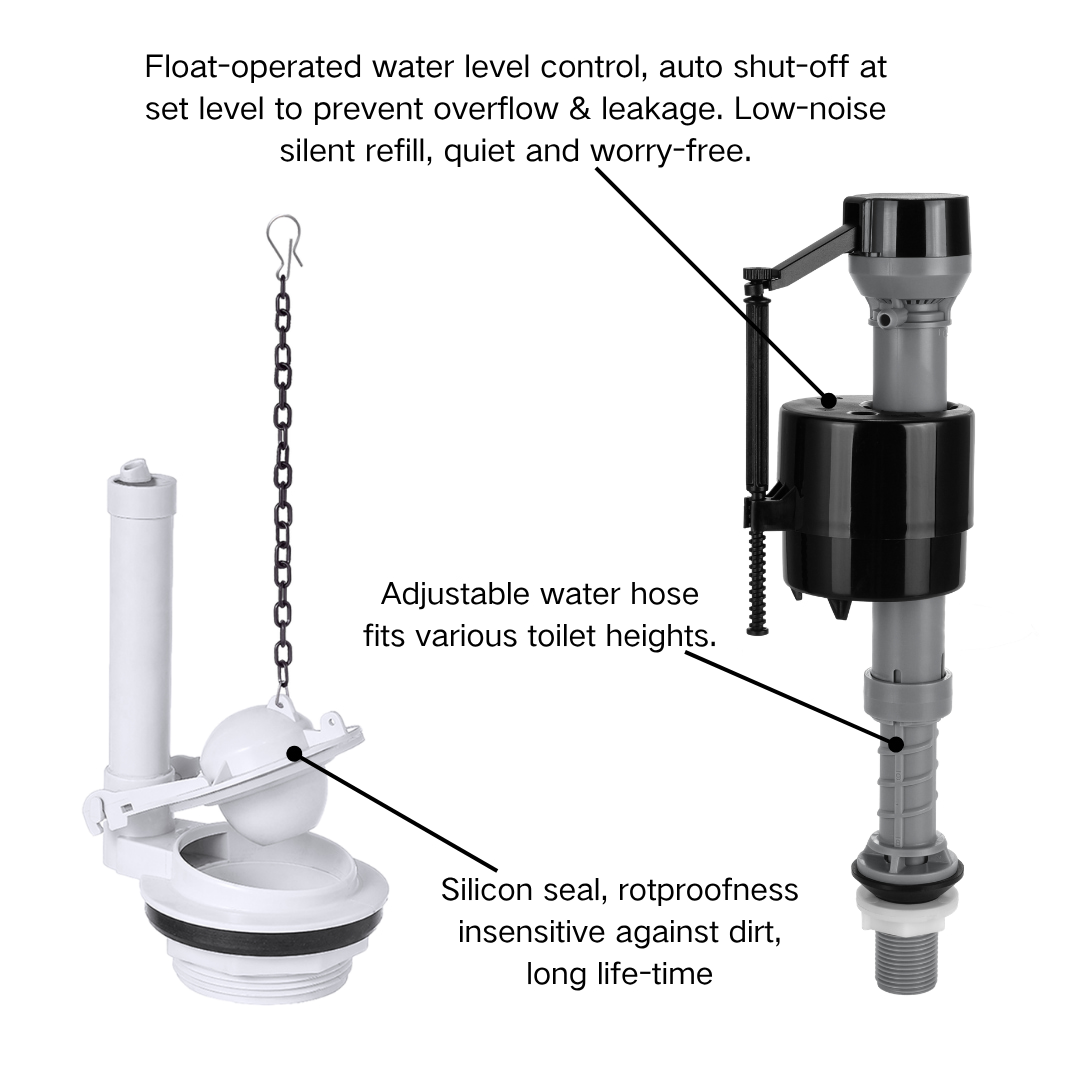

Adjustable toilet fill valve

The adjustable toilet fill valve for two piece toilets features a telescopic valve body that can be adjusted to fit different toilet tank heights.

Its float-operated water level control automatically shuts off the incoming water when the selected water level is reached. This helps prevent continuous filling, overflow and unnecessary water consumption.

The valve also includes a refill tube that directs water into the flush valve overflow pipe during the tank refill cycle. The low-noise refill design provides quieter operation in residential bathrooms.

15/16-14 NPSM water inlet

The fill valve uses a 15/16-14 NPSM fill valve OEM connection, commonly used for toilet tank water supply connections in the North American market.

Before placing an order, customers should confirm that the toilet water supply line and existing fill valve connection are compatible with the 15/16-14 NPSM thread specification.

For OEM projects, the fill valve body color, packaging, labels and instruction manual can be customized according to order requirements.

3-inch single flush valve

The 3 inch toilet flush valve replacement uses a large 3-inch outlet to provide fast and effective water discharge during flushing.

Its chain-operated single flush structure is simple to install, operate and maintain. The adjustable chain can be connected to the front-mount lever according to the internal layout of the toilet tank.

The sealing component uses durable silicone material, helping provide reliable sealing performance and reduce leakage caused by an aged or damaged flush valve seal.

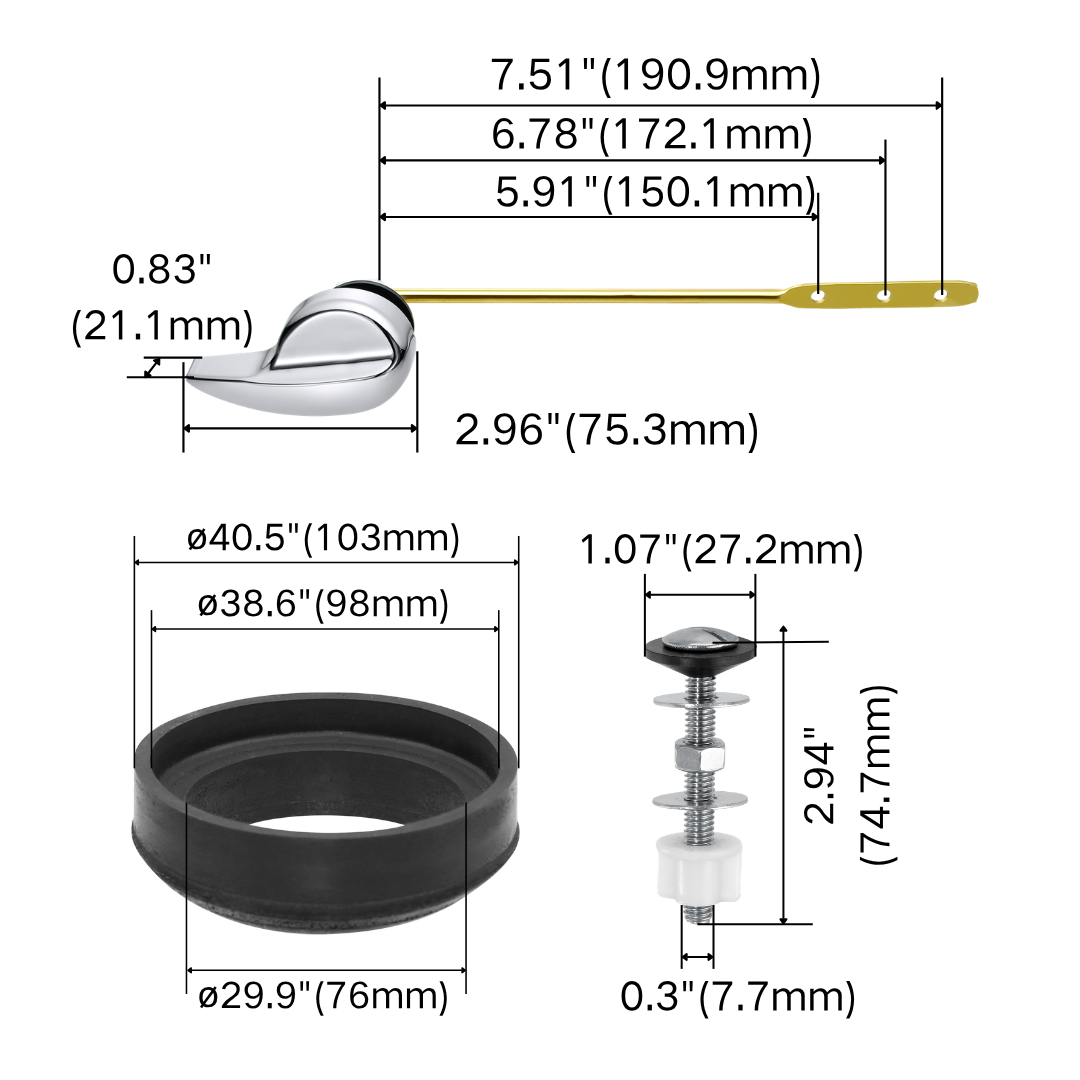

Front-mount toilet tank lever

The front mount toilet tank lever supplier configuration is designed for installation through the front opening of a two-piece toilet tank.

The lever includes:

  • Chrome-finished ABS handle
  • Gold-colored aluminum lever arm
  • Multiple chain connection holes
  • Adjustable chain connection position

The multiple holes on the lever arm allow installers to select the most suitable chain position according to the distance between the handle and flush valve.

Tank-to-bowl sealing gasket

The supplied rubber gasket is installed between the toilet tank and toilet bowl. It helps create a watertight seal around the flush valve outlet and reduces the risk of leakage at the tank-to-bowl connection.

The gasket should be correctly centered and evenly compressed during installation to ensure reliable sealing performance.

Stainless steel mounting bolts

The stainless steel toilet tank bolt kit wholesale configuration includes two corrosion-resistant tank mounting bolts together with washers, nuts and plastic fastening components.

The bolts are used to secure the toilet tank to the toilet bowl. Stainless steel construction provides better corrosion resistance in humid bathroom environments compared with ordinary steel hardware.

During installation, both bolts should be tightened evenly to prevent the toilet tank from tilting or placing excessive stress on the ceramic surface.

Suitable applications

This toilet tank repair kit is suitable for:

  • Two-piece toilet tank replacement
  • Residential toilet repair
  • Plumbing maintenance services
  • Hardware and home-improvement retail
  • Sanitary ware wholesale distribution
  • Toilet repair kit importers
  • E-commerce replacement product sales
  • OEM and private-label projects

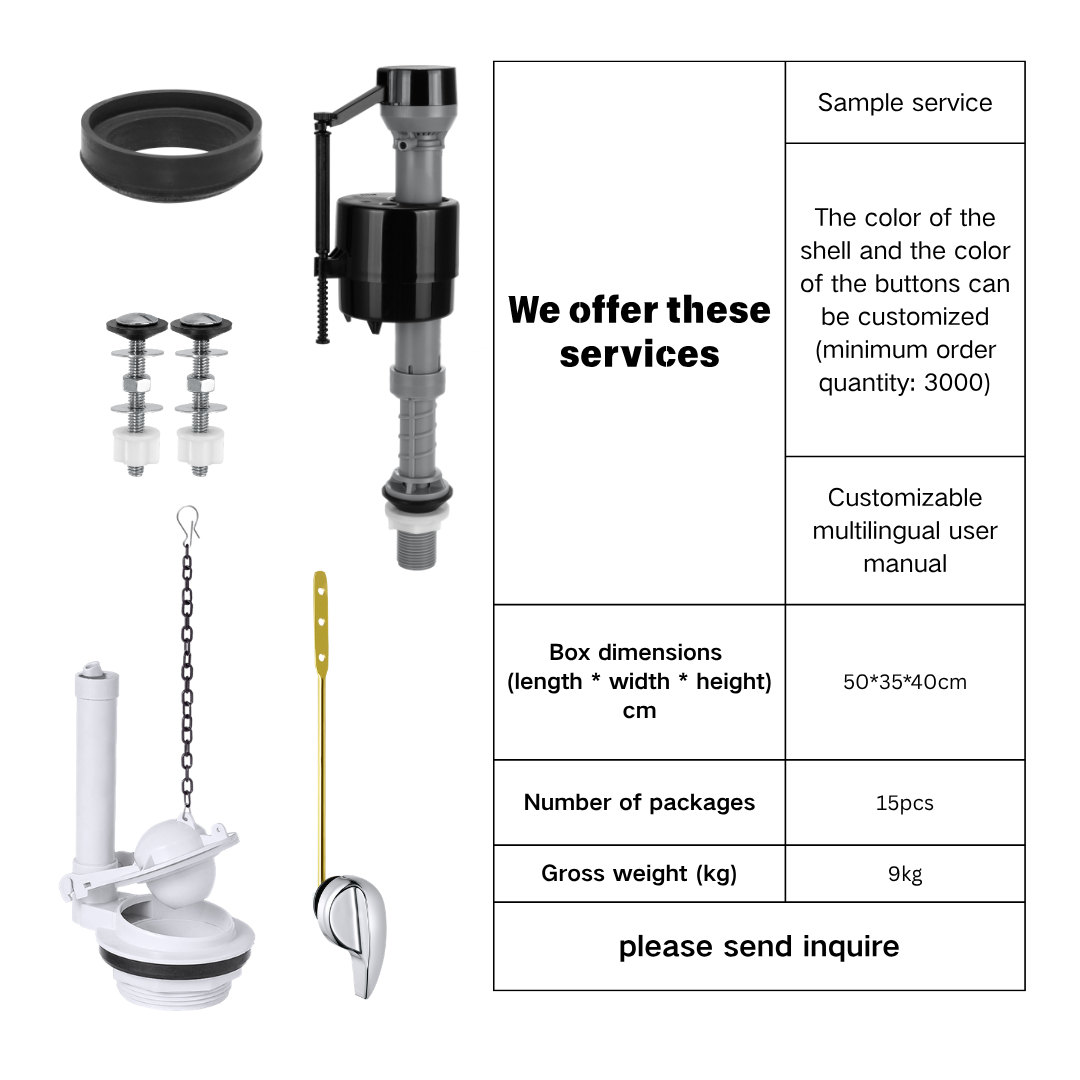

OEM and wholesale services

Available services include:

  • Product sample service
  • Customized product colors
  • Customized packaging
  • Private labels and barcodes
  • Multilingual instruction manuals
  • Wholesale carton packaging
  • OEM and ODM cooperation

Customization requirements and minimum order quantities depend on the selected product configuration.

Material: ABS, POM
Control: Front Mount
Delivery Time:

≤ 1000 pcs / 15 days

≤ 5000 pcs / 20 days

> 5000 pcs / negotiate

Sample Service Yes
Supply Ability 60000 pcs / month



    PRODUCT ADVANTAGES



1. Proven Performance Across Multiple Markets

Our product has been successfully sold in multiple countries and markets. Over the years, we have continuously iterated and upgraded it based on market feedback to address various challenges, such as high water temperatures, high water pressure, and poor water quality. Today, the product is highly mature and stable. Using our product to expand your business can effectively reduce customer complaints and improve customer satisfaction.



2. Comprehensive Customization Services

We offer customization options including LOGO printing, color selection, and packaging design. For example, we can print your logo on the product surface, apply your exclusive colors to the float and decorative cover, and our professional packaging designers can create market-oriented packaging that enhances your brand presence. We are committed to helping you establish a strong brand influence in your local market.



3. Certified for Global Compliance

This product has already obtained CE, CUPC, and ICC-ES certifications. If your target market requires additional certifications, we can assist you in obtaining the necessary approvals to ensure smooth market entry.



    FAQ



What type of toilet is this repair kit suitable for?

This repair kit is designed for two-piece toilets with a separate toilet tank and bowl. Before ordering, please confirm that the toilet uses a 3-inch flush valve outlet, a front-mounted tank lever and a 15/16-14 NPSM water inlet connection.



Can the height of the fill valve be adjusted?

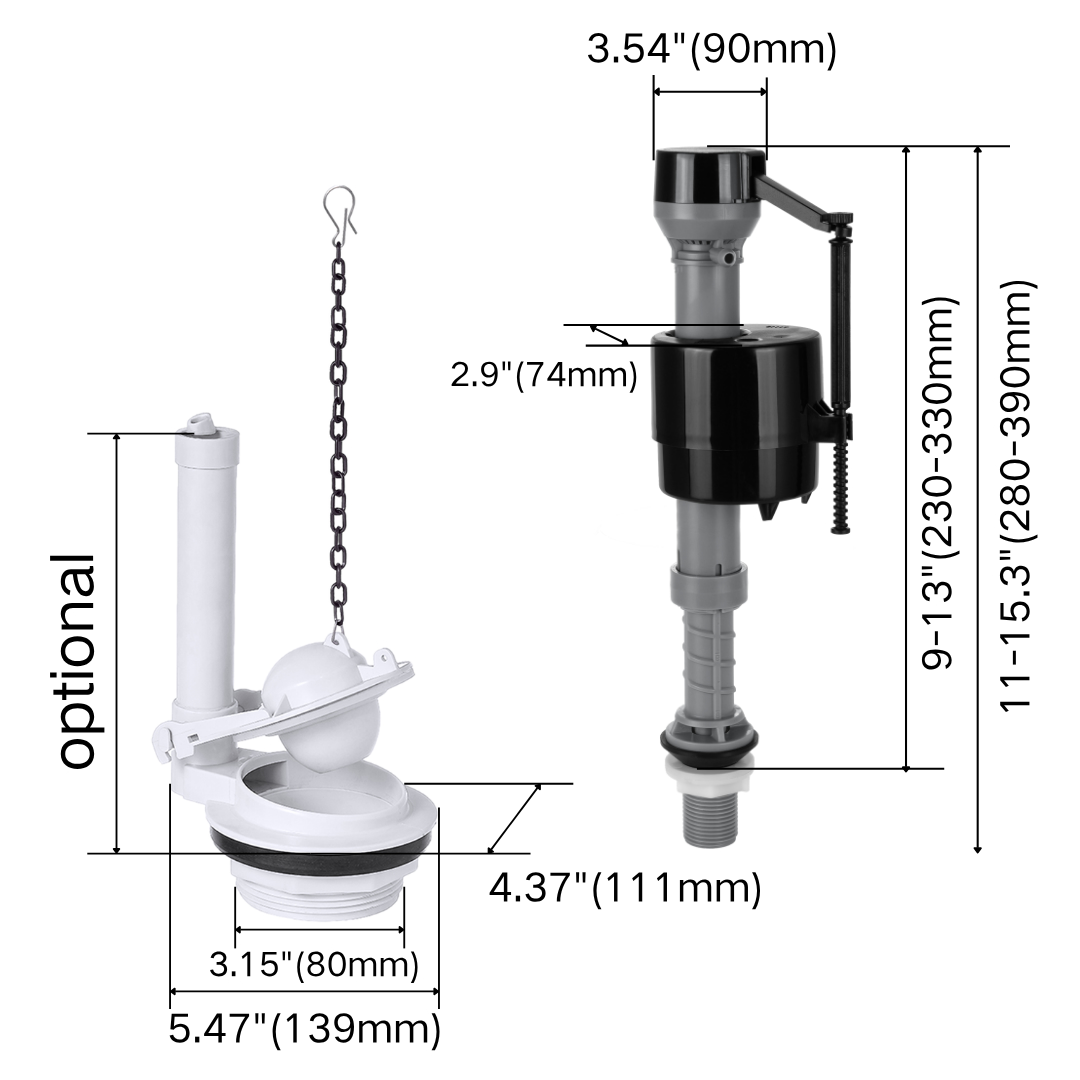

Yes. The fill valve body is height-adjustable from approximately 280 mm to 390 mm, allowing it to fit different toilet tank heights. The final height should be adjusted according to the toilet tank and the height of the flush valve overflow pipe.



Can the product and packaging be customized?

Yes. Product colors, private labels, packaging, barcodes and multilingual instruction manuals can be customized for OEM and wholesale orders. The minimum order quantity depends on the requested customization.
