Bottom-Fixing Wall-Hung Toilet Mounting Kit with Long Guide Tubes

    PRODUCT DESCRIPTION

Product Name: Bottom-Fixing Wall-Hung Toilet Mounting Kit with Long Guide Tubes

Concealed Installation from Underneath

Designed as a bottom-fixing wall-hung toilet mounting kit for concealed installations, this hardware set allows the ceramic pan to retain clean, uninterrupted top and side surfaces.

It is a wall-hung toilet fixing kit for underside access, making it suitable for toilet designs where the internal fastening position cannot be seen or reached directly after the pan is placed against the wall.

Long Guide-Tube Locking Mechanism

The concealed wall-mounted toilet fixing bolts with guide sleeves solve the blind-access problem encountered during bottom-up installation.

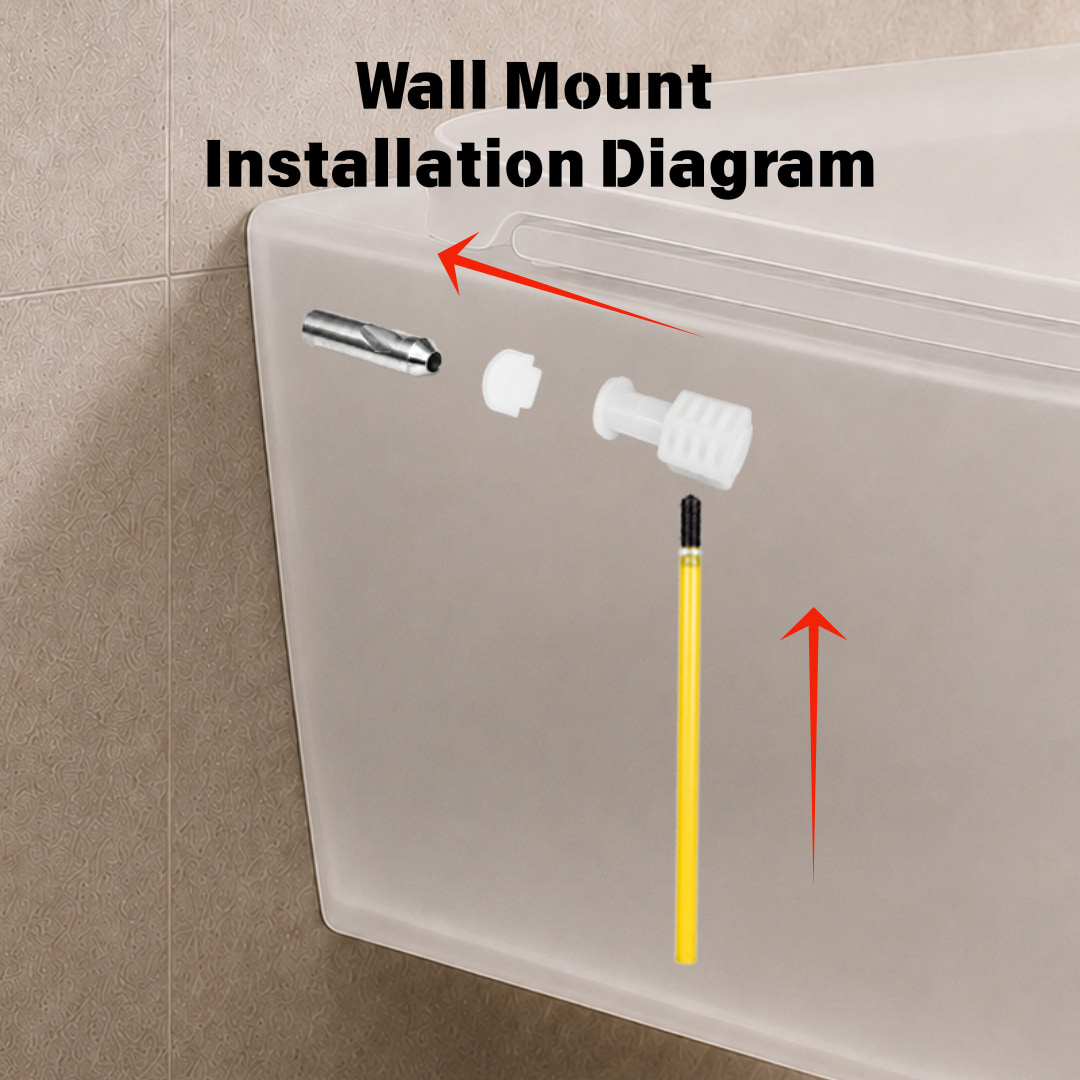

Each yellow tube guides the supplied long Allen key toward the internal drive of the black threaded fixing bolt. The installer inserts the Allen key through the open lower end of the tube and tightens upward, without needing direct visual or hand access to the concealed engagement point.

This guided path helps reduce tool misalignment and makes the hidden fastening position easier to locate during installation.

Dimensional Reference

As wall-hung WC mounting hardware for bathroom projects, the kit provides the following reference dimensions:

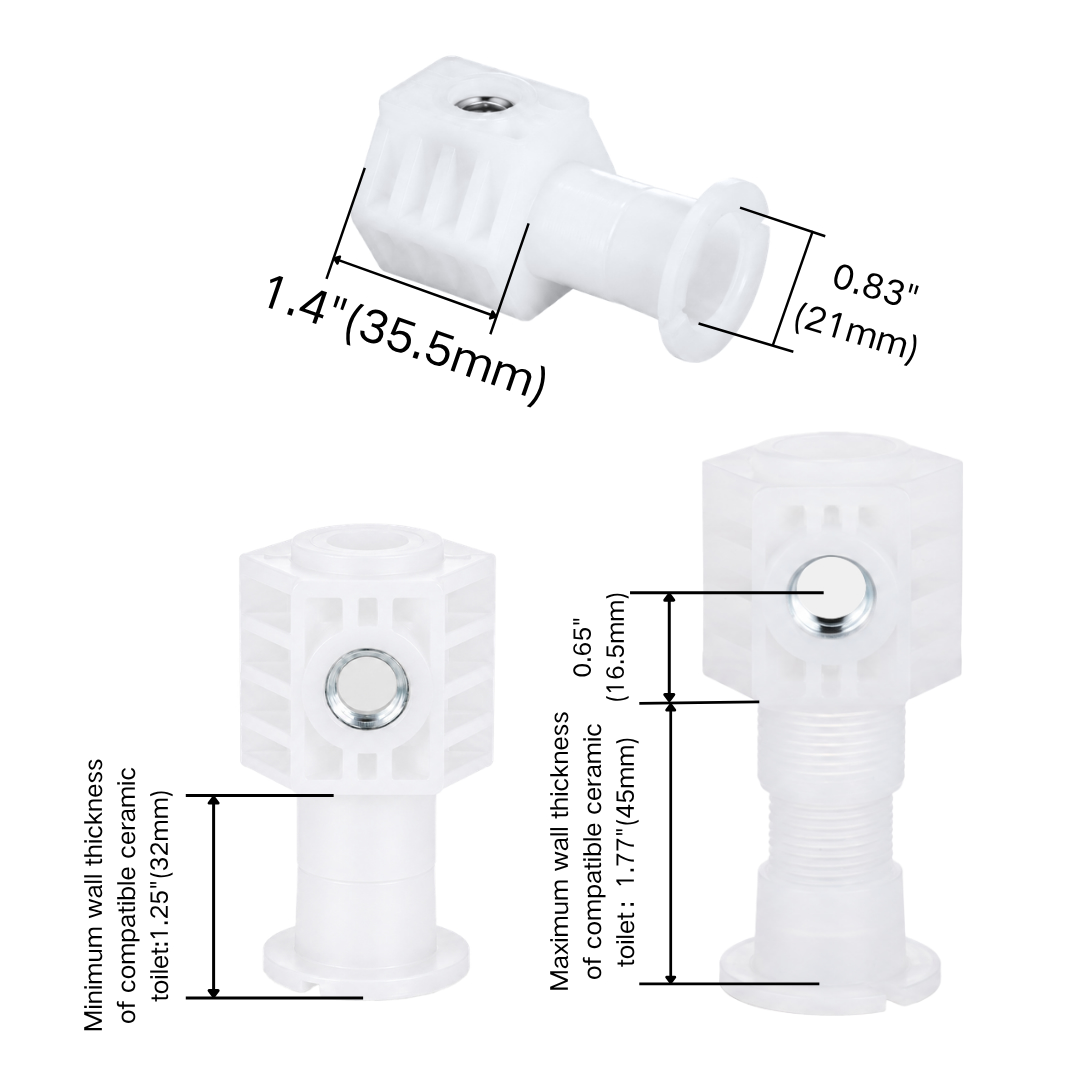

• Compatible ceramic mounting thickness shown: 32–45 mm

• White fixing-body section shown: 35.5 mm

• White fixing-body opening/flange diameter shown: 21 mm

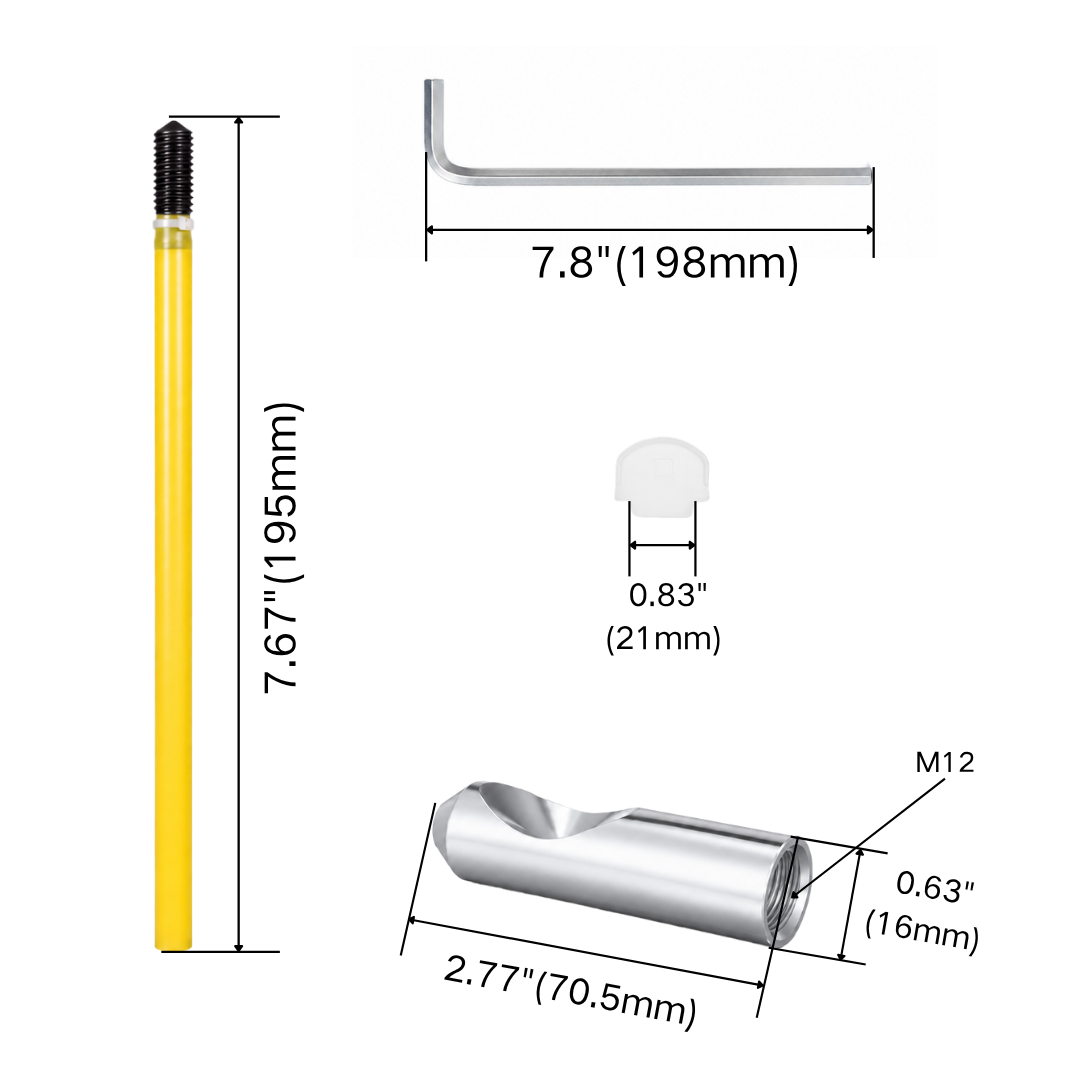

• Metal threaded sleeve: M12 internal thread

• Metal sleeve length: 70.5 mm

• Metal sleeve outside diameter: 16 mm

• Yellow guide-tube fixing bolt assembly length: 195 mm

• Supplied Allen key length: 198 mm

• Cover width shown: 21 mm

The toilet cavity layout, ceramic thickness, mounting clearances and M12 connection should be checked before ordering. The kit should not be described as universally compatible with every wall-hung toilet.

Complete Paired Hardware Set

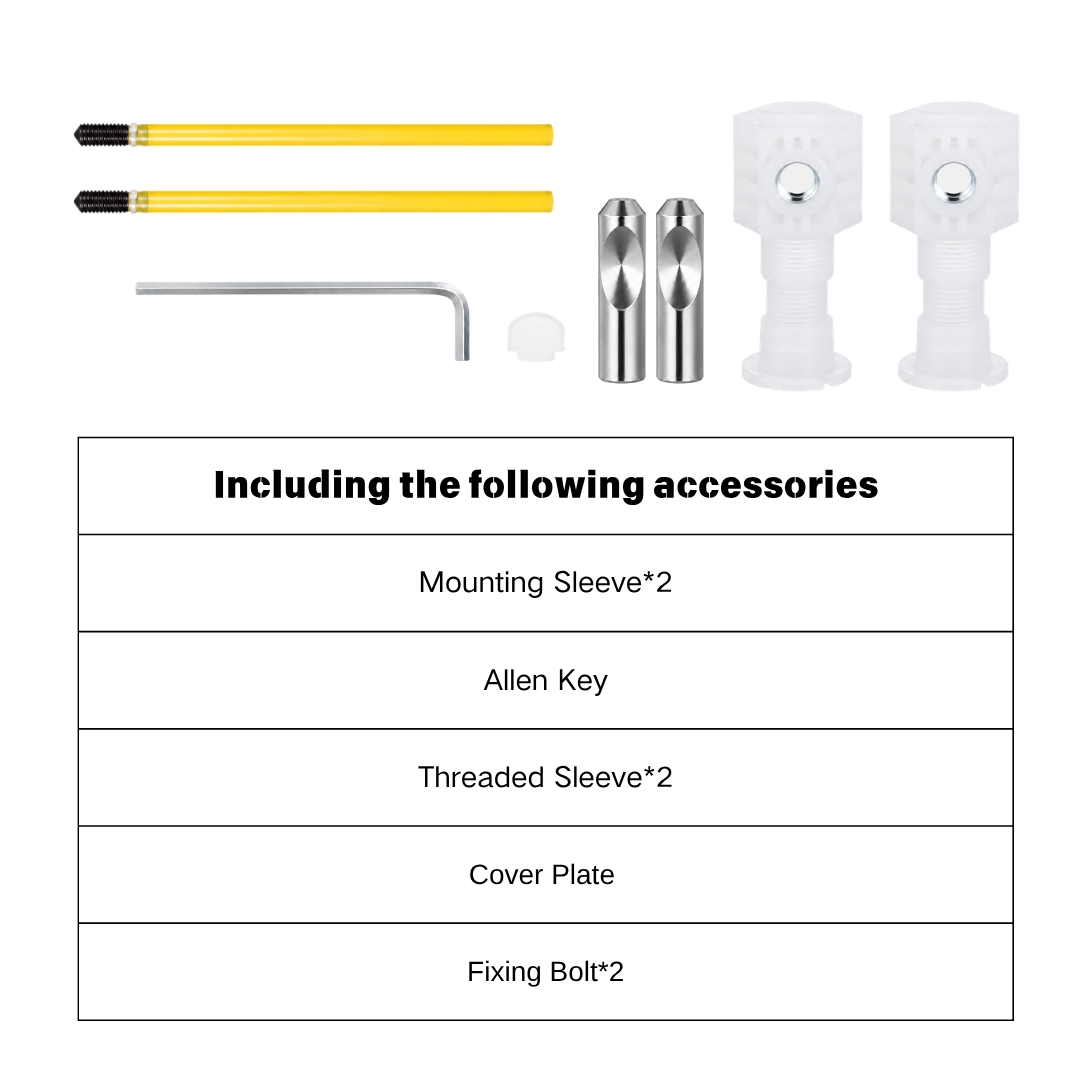

Supplied as a commercial wall-hung toilet installation accessory kit, each set contains:

• 2 fixing bolts with long yellow guide tubes

• 2 white plastic mounting bodies

• 2 M12 metal threaded sleeves

• 1 long Allen key

• 1 cover

• Individual product box

The matched components provide the hardware needed for both fixing positions of one wall-hung ceramic toilet.

Packaging and Buyer Applications

The format makes this a practical wall-hung toilet fixing kit for sanitary ware distributors, ceramic toilet manufacturers, bathroom-project suppliers and replacement-parts buyers.

Reference packaging information shown in the supplied images:

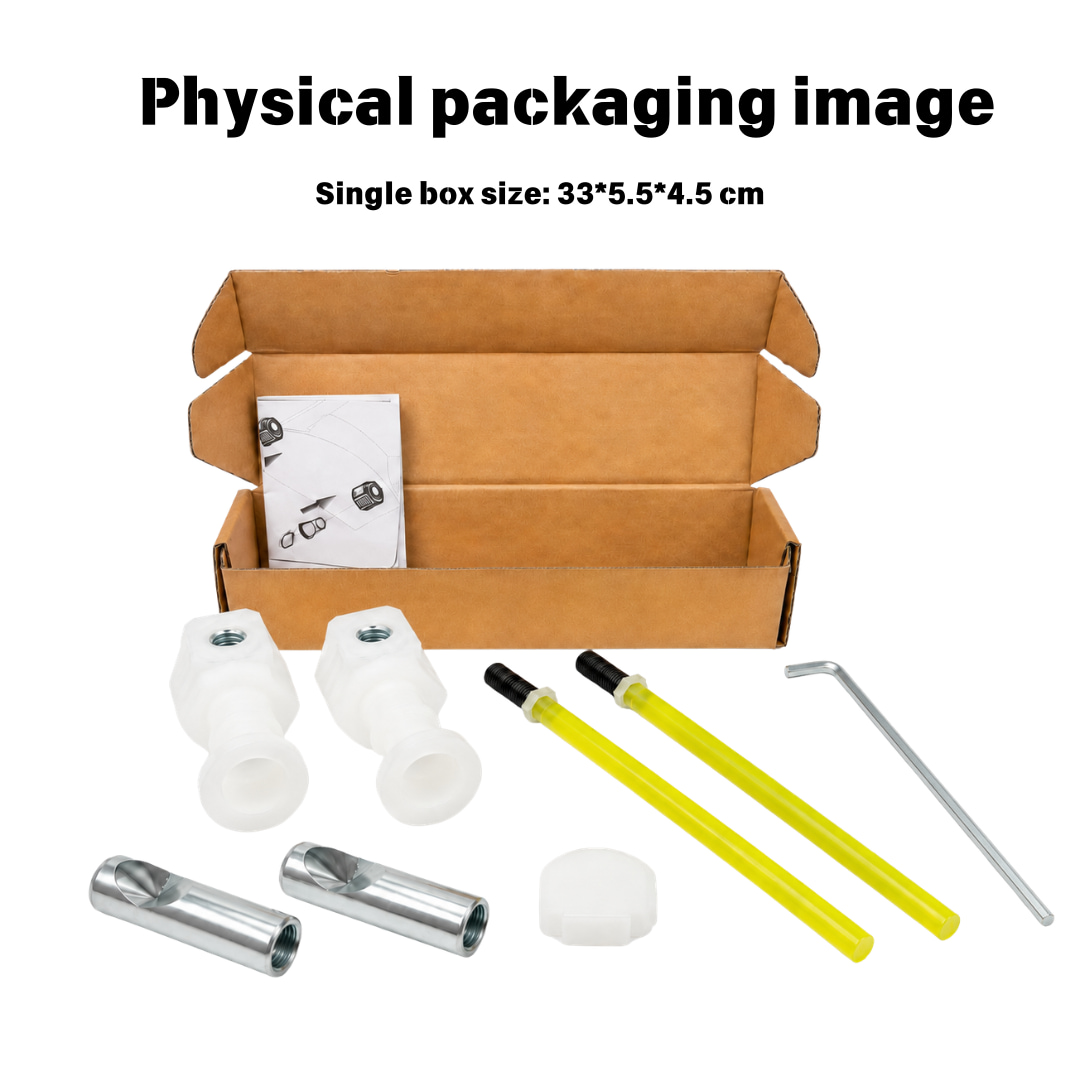

• Individual box size: 33 × 5.5 × 4.5 cm

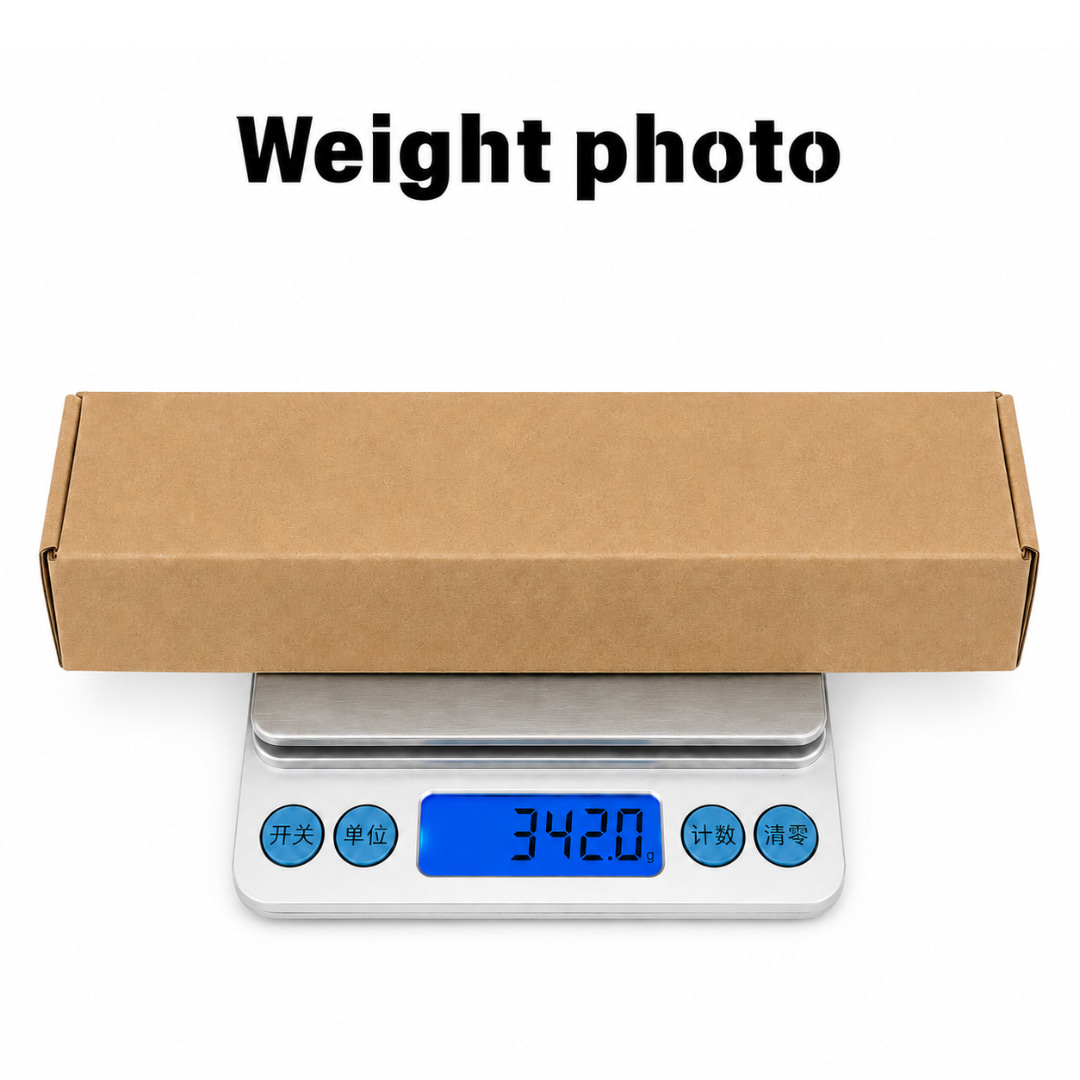

• Boxed-set weight shown: 342.0 g

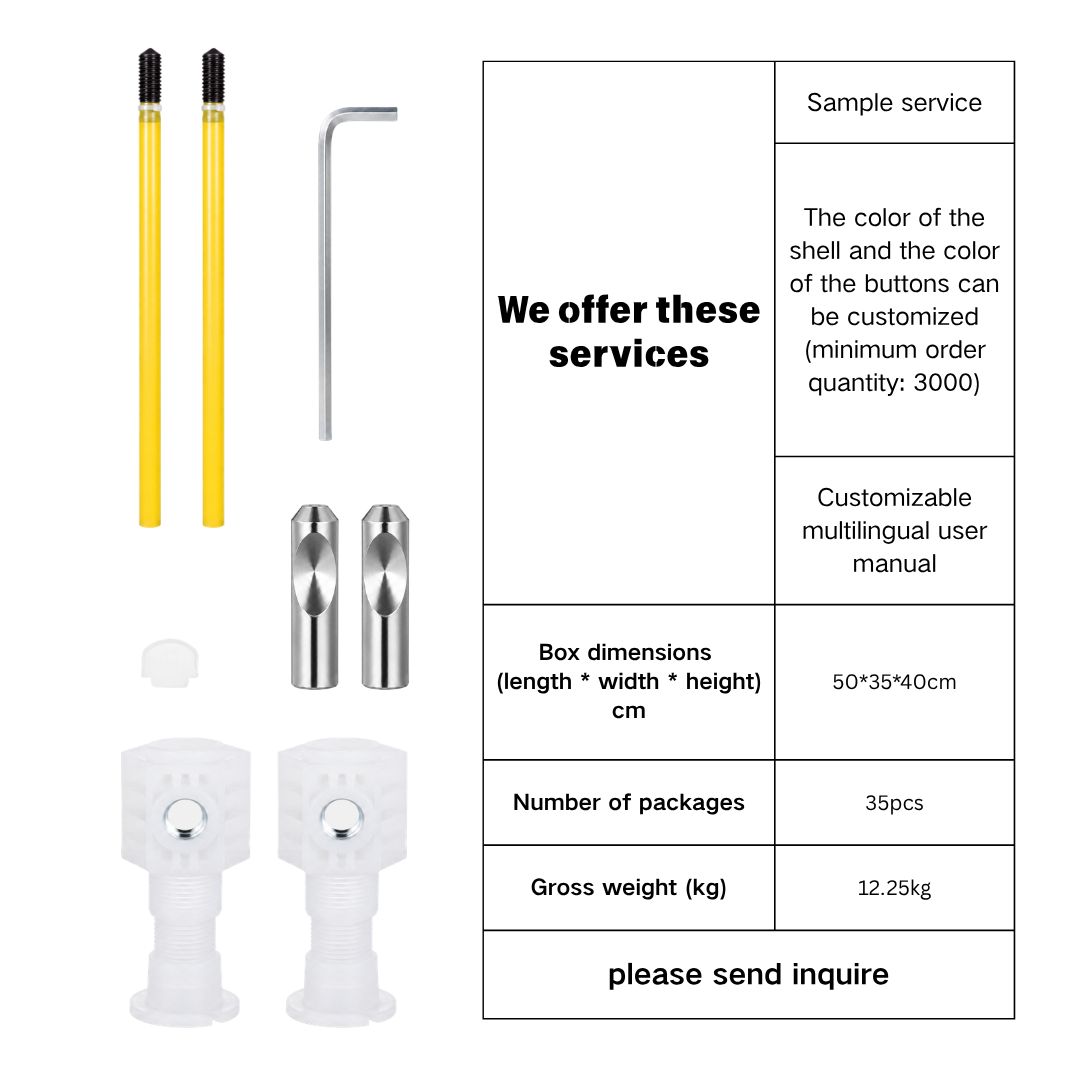

• Master carton size: 50 × 35 × 40 cm

• Quantity per master carton: 35 sets

• Master carton gross weight: 12.25 kg

    PRODUCT ADVANTAGES

1. Proven Performance Across Multiple Markets

Our product has been successfully sold in multiple countries and markets. Over the years, we have continuously iterated and upgraded it based on market feedback to address various challenges, such as high water temperatures, high water pressure, and poor water quality. Today, the product is highly mature and stable. Using our product to expand your business can effectively reduce customer complaints and improve customer satisfaction.

2. Comprehensive Customization Services

We offer customization options including LOGO printing, color selection, and packaging design. For example, we can print your logo on the product surface, apply your exclusive colors to the float and decorative cover, and our professional packaging designers can create market-oriented packaging that enhances your brand presence. We are committed to helping you establish a strong brand influence in your local market.

3. Certified for Global Compliance

This product has already obtained CE, CUPC, and ICC-ES certifications. If your target market requires additional certifications, we can assist you in obtaining the necessary approvals to ensure smooth market entry.

    FAQ

What type of toilet is this fixing kit designed for?

It is designed for wall-hung ceramic toilets that are secured from openings underneath the pan, particularly models without accessible fixing holes on the top or sides. Before ordering, confirm the internal cavity layout, 32–45 mm ceramic mounting thickness and M12 sleeve connection.

What is the purpose of the yellow guide tubes?

The yellow tubes guide the long Allen key from the underside opening to the concealed black fixing bolts. They help the installer locate and tighten the hidden fastening points even when the complete tool path cannot be seen or reached by hand.

What is included in one set?

One set includes two yellow guide-tube fixing bolts, two white plastic mounting bodies, two M12 metal threaded sleeves, one long Allen key and one cover. The components are supplied together for the two fixing positions of one wall-hung toilet.
