Wall Hung Toilet Fixing Kit with Extended Guide Canister | Top-Fixing Installation System

    PRODUCT DESCRIPTION

Product Name: M12*90mm Wall Hang Toilet Bolts With Tube

Extended Design for Deep Mounting Holes

This fixing system features an extended guide canister that provides additional installation reach compared with conventional wall hung toilet fixing systems.

The longer structure makes this wall hung toilet fixing kit for deep mounting holes particularly suitable for ceramic toilets where the fixing hole is positioned deeper inside the toilet body.

It can also be used as a wall hung toilet fixing kit for thick ceramic, helping installers securely connect the toilet to the fixing studs of a concealed support frame.

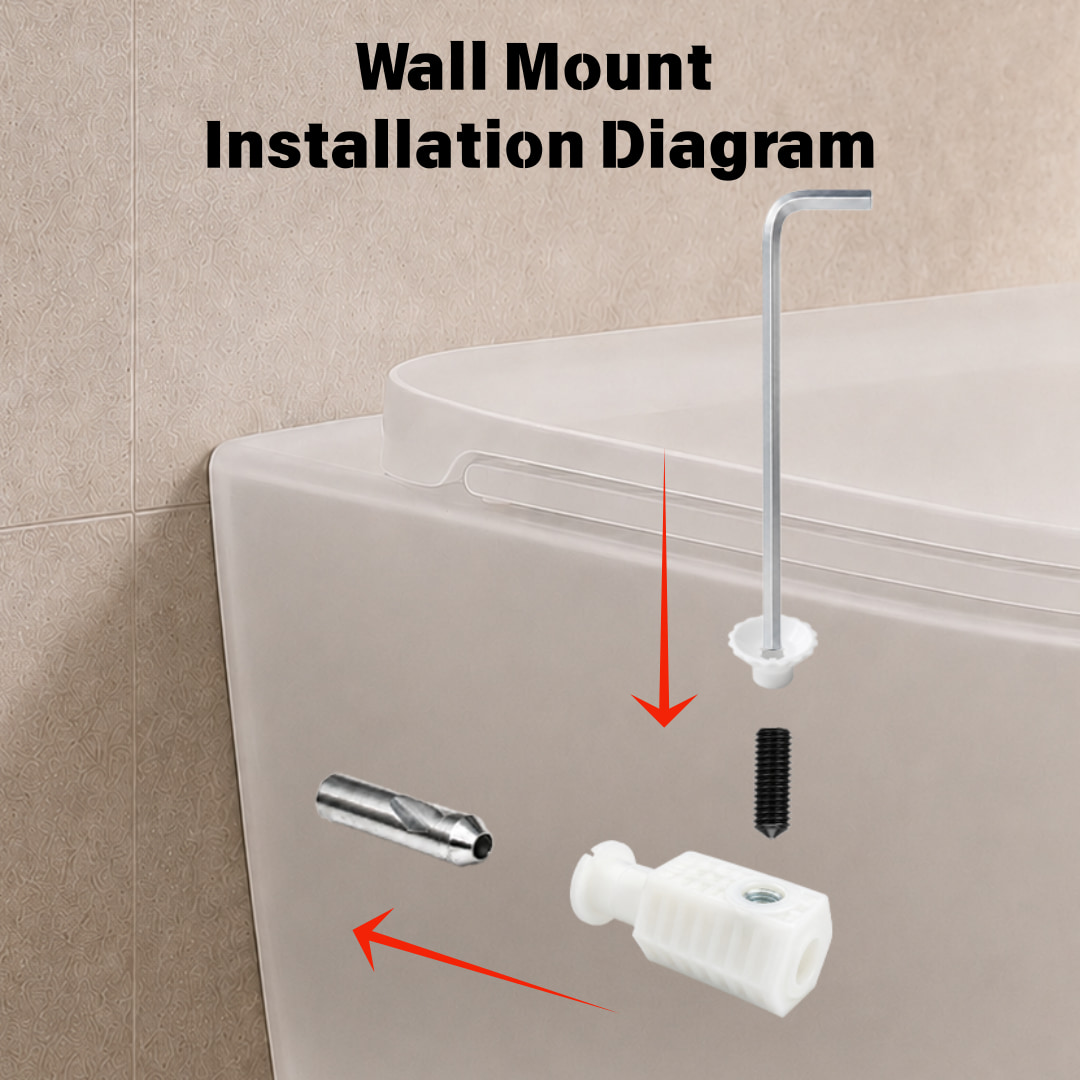

Top-Fixing Installation

Unlike conventional systems that require access from the side or rear of the toilet, this top fixing wall hung toilet bolt kit can be tightened from above.

The supplied Allen key reaches the internal fixing mechanism through the guide canister, allowing the installer to lock the toilet securely onto the mounting studs.

This design is especially useful when side access around the installed toilet is limited.

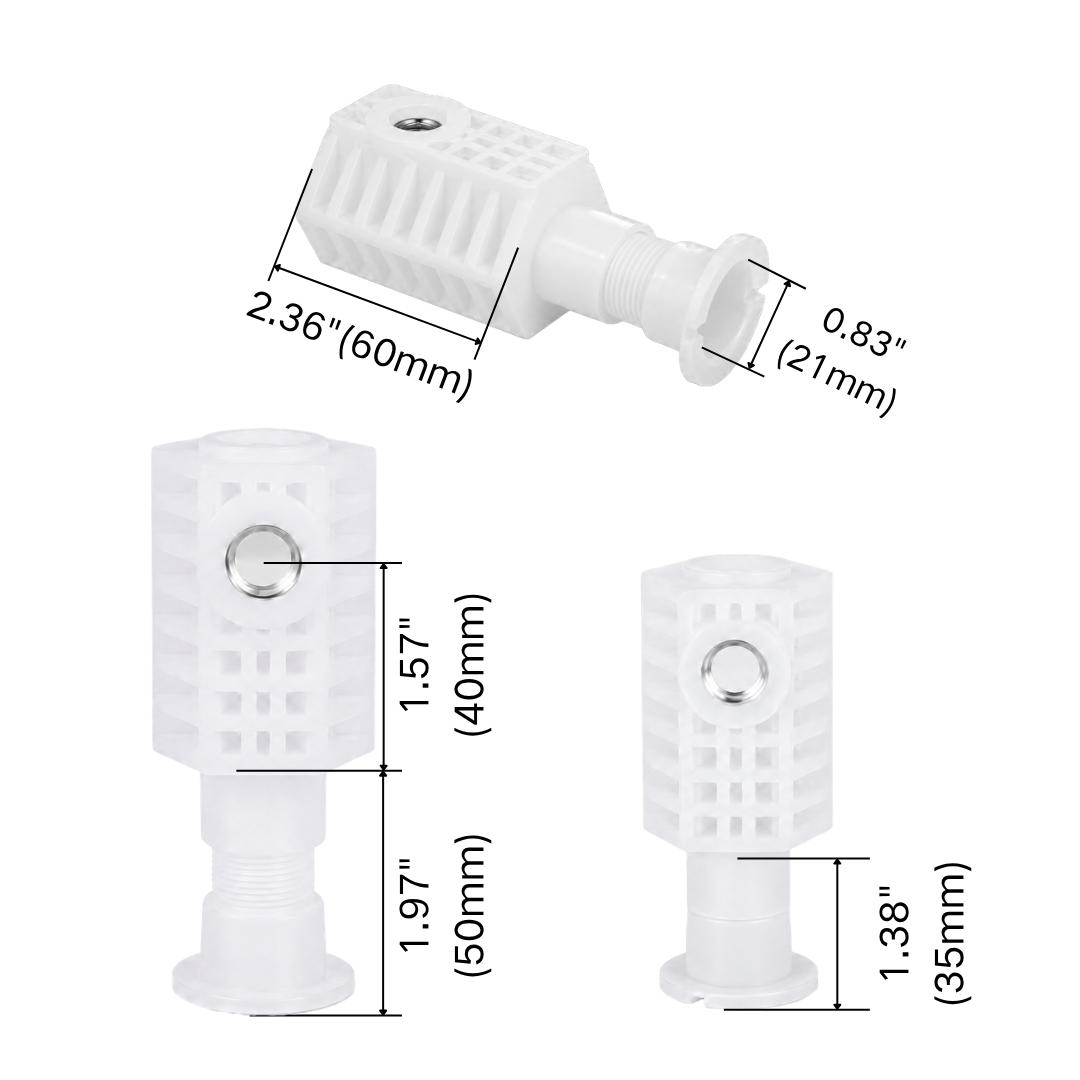

Adjustable Installation Range

The fixing system provides an installation adjustment range of approximately:

• 35–50 mm adjustable fixing reach
• 40 mm guide-body reference dimension
• Guide canister length: 60 mm
• Guide opening diameter: 21 mm

The extended configuration provides additional flexibility for different ceramic toilet structures.

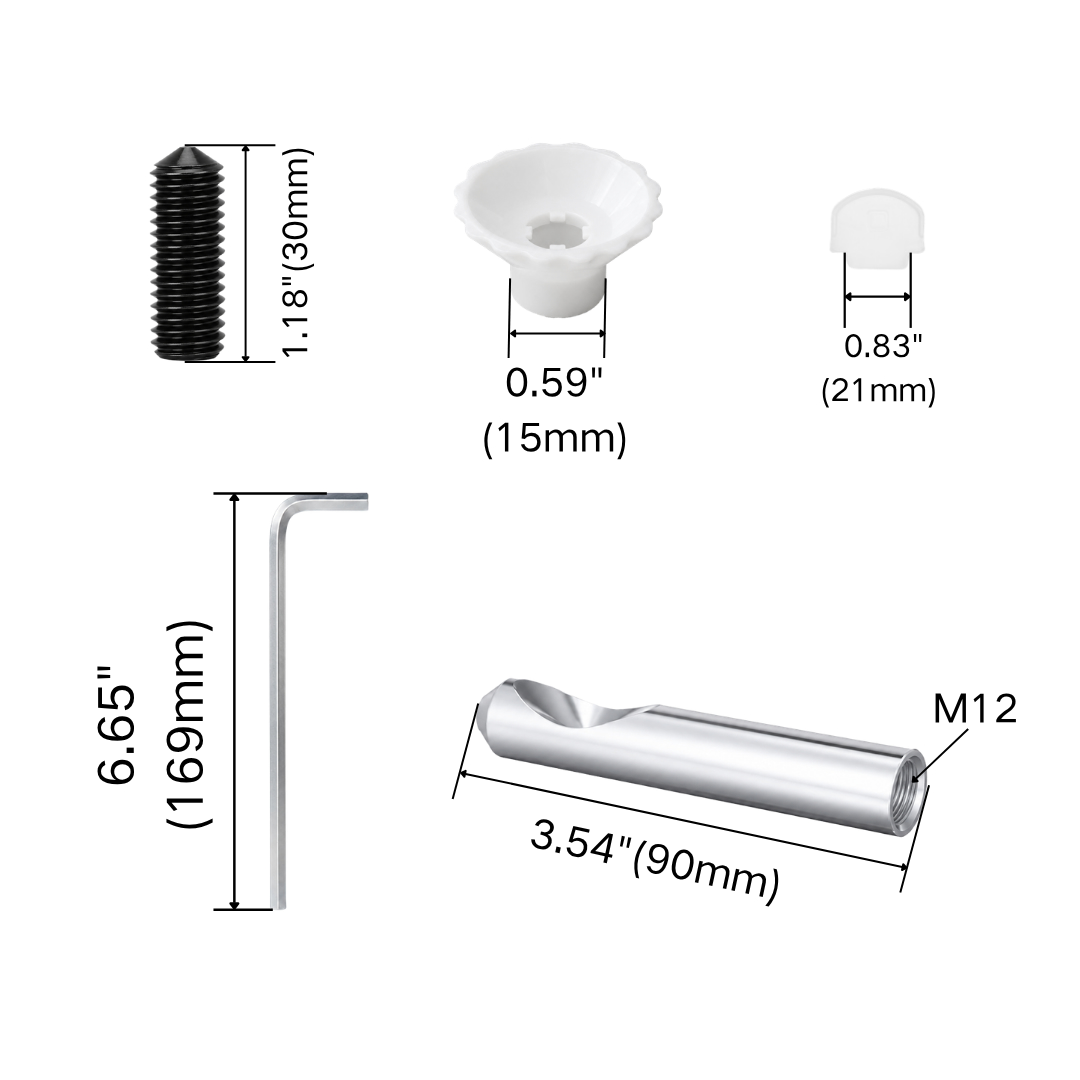

M12 Metal Fixing Pins

The kit includes two metal fixing pins featuring:

• Length: 90 mm
• Internal thread: M12
• 2 pcs per set

The fixing pins connect the ceramic toilet with the supporting studs installed on the concealed toilet frame.

For sanitary ware distributors and installation-system suppliers looking for a wall hung toilet installation kit supplier, this configuration provides the essential components required for complete toilet mounting.

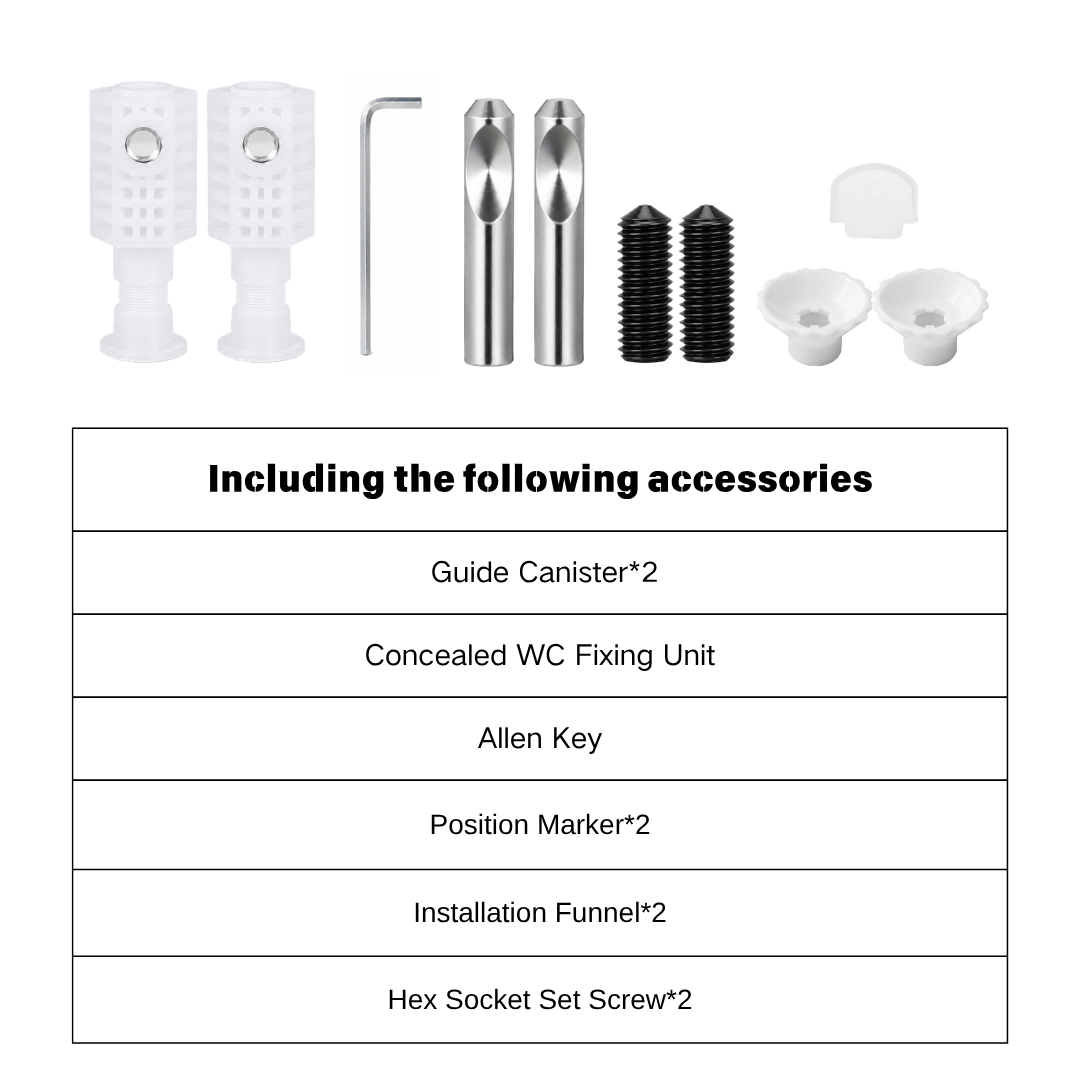

Complete Installation Accessories

Each set includes:

• 2 × Extended guide canisters
• 2 × M12 metal fixing pins
• 2 × Hex socket set screws
• 2 × Installation funnels
• 1 × Position marker
• 1 × Allen key

The hex socket set screws are approximately 30 mm long, while the supplied Allen key is approximately 169 mm long for easier top access during installation.

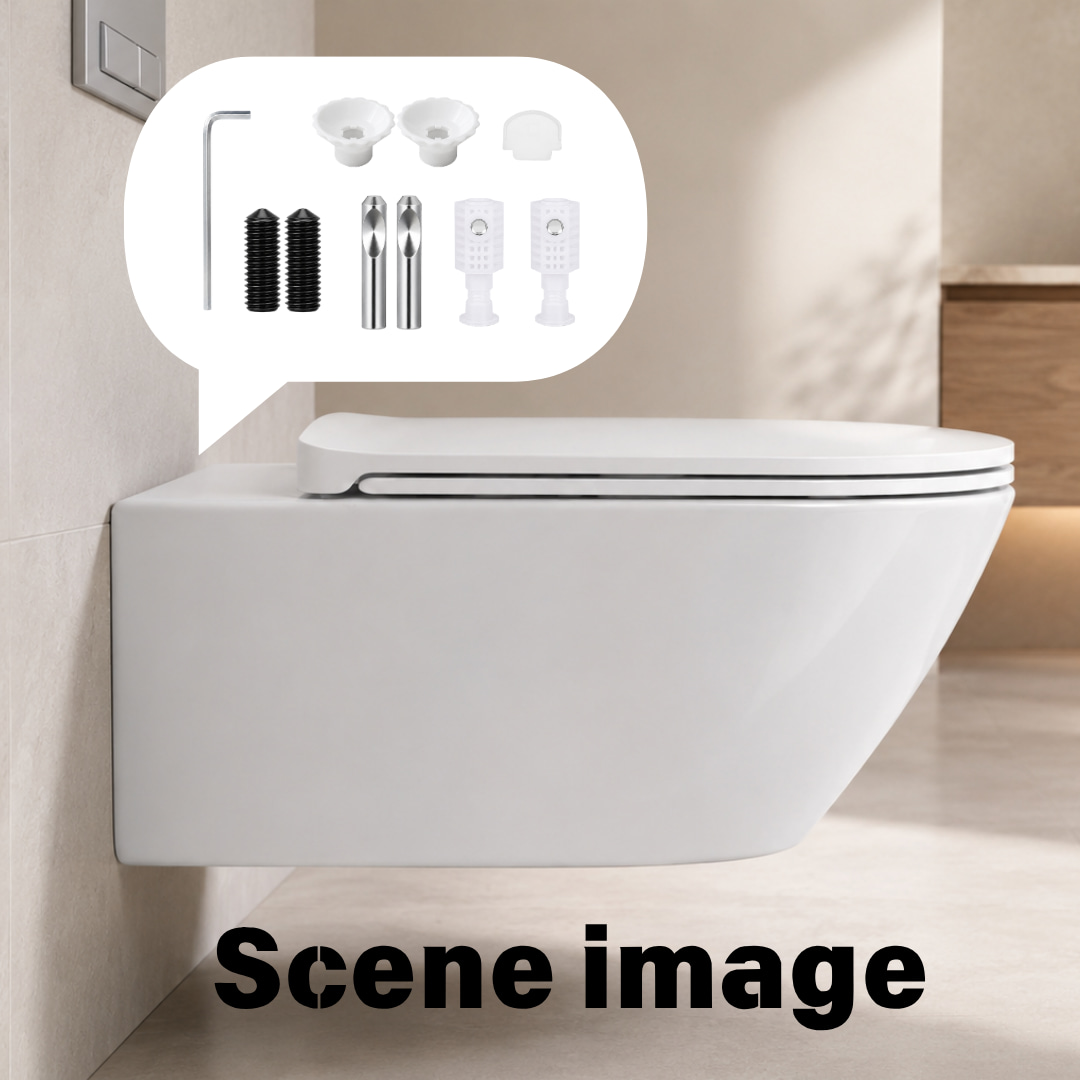

Designed for Concealed WC Systems

The kit is suitable for wall-mounted toilets installed with concealed cistern frames and other compatible wall support systems.

As a concealed WC fixing kit wholesale solution, it is suitable for:

• Concealed cistern manufacturers
• Wall hung toilet manufacturers
• Sanitary ware distributors
• Plumbing wholesalers
• Replacement parts suppliers
• Installation system suppliers

For customers searching for a wall hung toilet fixing kit manufacturer, OEM packaging and component configuration can also be discussed according to project requirements.

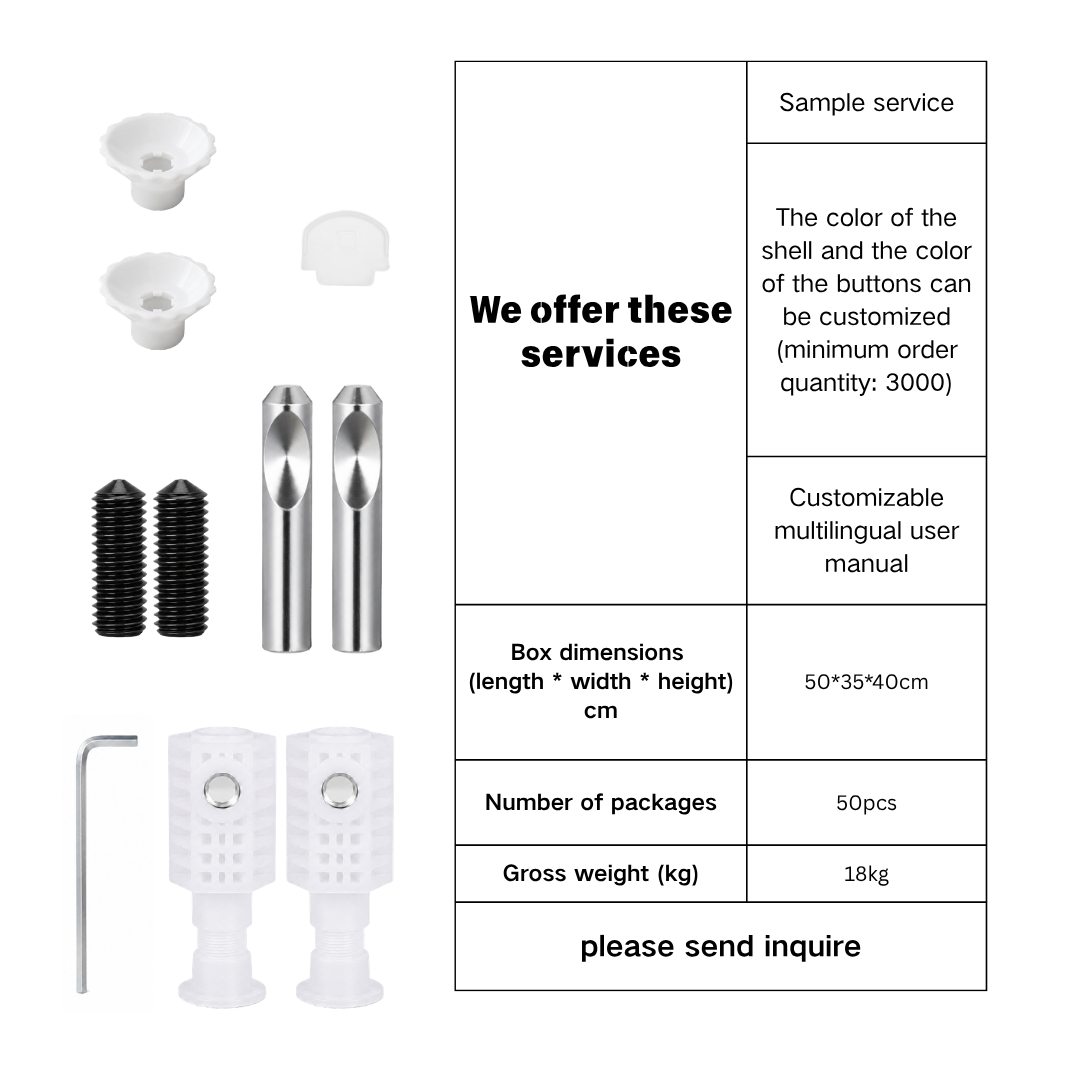

Packaging Information

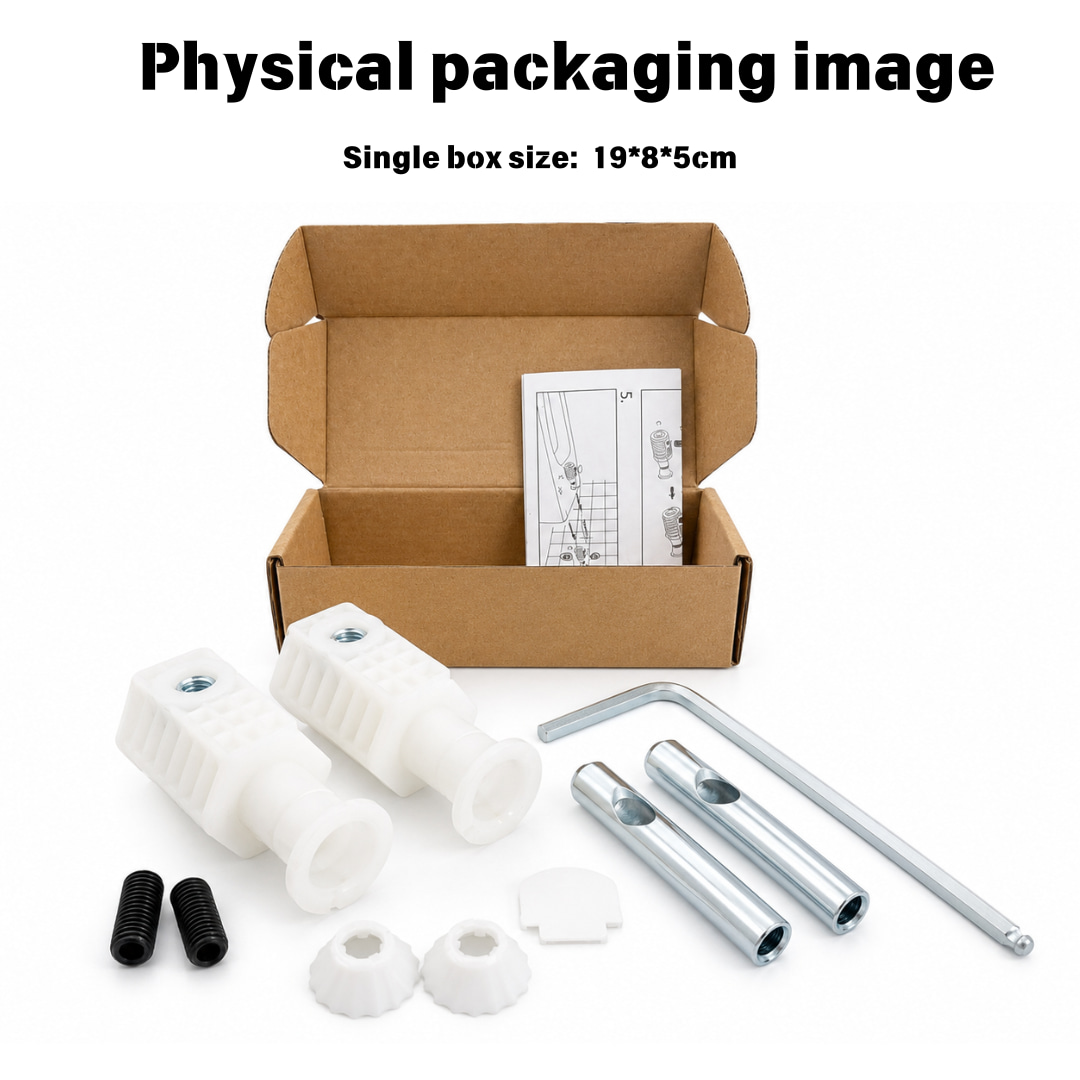

• Individual box: approximately 19 × 8 × 5 cm

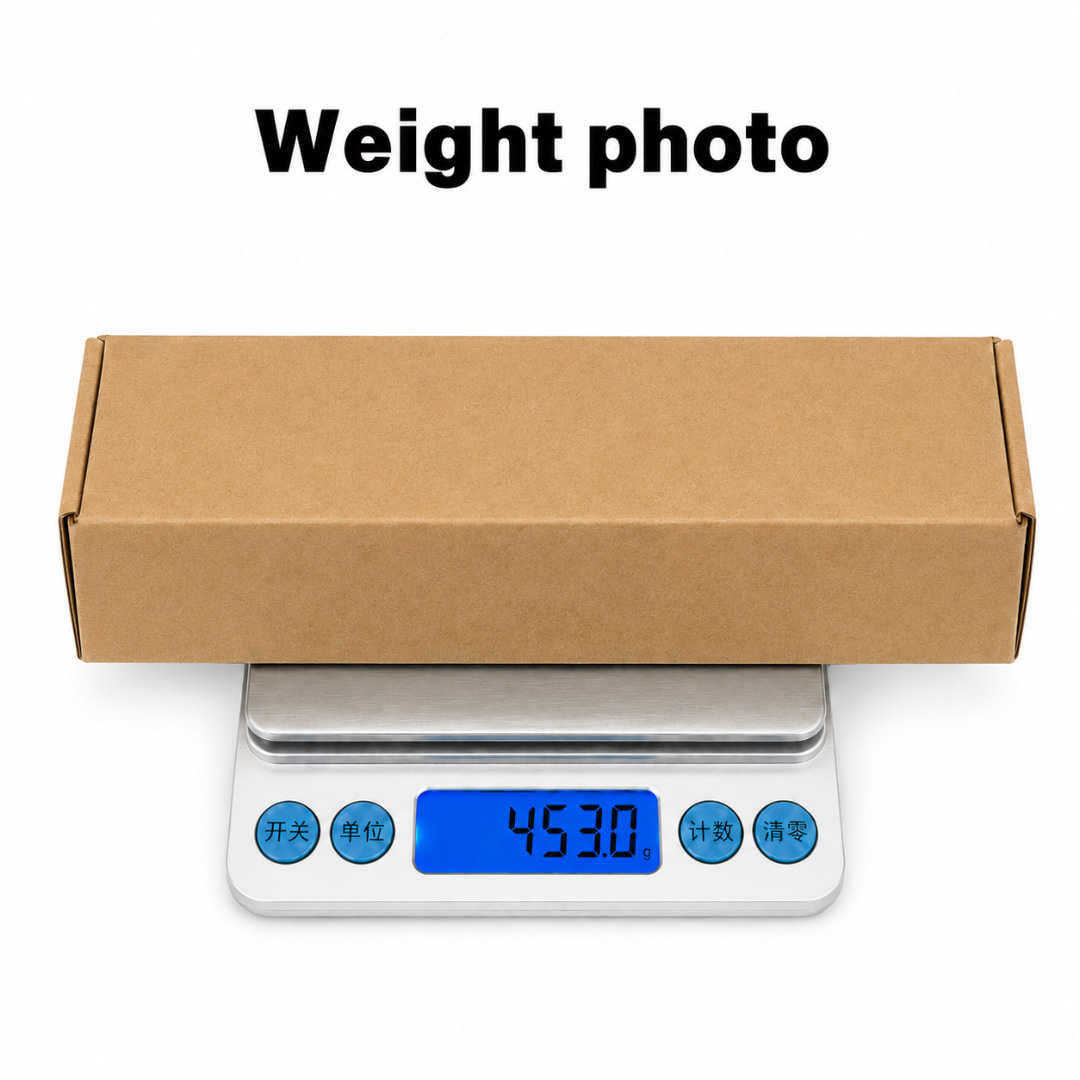

• Approximate boxed weight: 453 g
• Carton quantity: 50 sets
• Master carton: approximately 50 × 35 × 40 cm
• Gross weight: approximately 18 kg

    PRODUCT ADVANTAGES

1. Proven Performance Across Multiple Markets

Our product has been successfully sold in multiple countries and markets. Over the years, we have continuously iterated and upgraded it based on market feedback to address various challenges, such as high water temperatures, high water pressure, and poor water quality. Today, the product is highly mature and stable. Using our product to expand your business can effectively reduce customer complaints and improve customer satisfaction.

2. Comprehensive Customization Services

We offer customization options including LOGO printing, color selection, and packaging design. For example, we can print your logo on the product surface, apply your exclusive colors to the float and decorative cover, and our professional packaging designers can create market-oriented packaging that enhances your brand presence. We are committed to helping you establish a strong brand influence in your local market.

3. Certified for Global Compliance

This product has already obtained CE, CUPC, and ICC-ES certifications. If your target market requires additional certifications, we can assist you in obtaining the necessary approvals to ensure smooth market entry.

    FAQ

What types of wall hung toilets is this fixing kit suitable for?

This kit is designed for wall hung toilets with relatively thick ceramic walls or deep mounting holes. The adjustable fixing range is approximately 35–50 mm, making it suitable for installations that require a longer fixing reach.

How is this wall hung toilet fixing kit installed?

This is a top-fixing system. The fixing mechanism is tightened from above using the supplied Allen key, which is especially convenient when side access to the toilet is limited.

What components are included in the fixing kit?

Each kit includes 2 extended guide canisters, 2 M12 metal fixing pins, 2 hex socket set screws, 2 installation funnels, 1 position marker, and 1 Allen key.
